30KN Stringing Hydraulic Puller Tensioner For OPGW ADSS Transmission Project

Product Details

Place of Origin: NINGBO CHINA

Brand Name: Linkai

Certification: ISO CE

Model Number: YQZ30

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiable

Packaging Details: Export term

Delivery Time: 8-15 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 10 sets / month

Get Best Price
Product Details
High Light:

hydraulic cable tensioner

,

tension stringing equipment

Model:
YQZ30
Name:
Hydraulic Puller Tensioner
Pulling Force:
30KN
Max Pulling Speed::
5KM/H
Max Continual Tension:
25KN
Apply:
Pulling And Tensioning OPGW
Model:
YQZ30
Name:
Hydraulic Puller Tensioner
Pulling Force:
30KN
Max Pulling Speed::
5KM/H
Max Continual Tension:
25KN
Apply:
Pulling And Tensioning OPGW
Product Description

30KN Hydraulic Cable Tensioner Used For OPGW ADSS Transmission Project



Brief Introduction:

30KN Hydraulic Cable Tensioner Used For OPGW ADSS Transmission Project

A transmission line tension stringing and aerial cableway erection job tension of the tension machine. The liner is fixed round groove of the main driven wheels arranged in parallel composition, and a diameter of the driven wheel driving wheel diameter 0.6 to 0.95, the master, the driven wheel two further fixed wheel and two or more groove substrate. When the wire is rotated by external traction rounds, only the large diameter drive wheel braking force that is applied. Selection round slot liner material of different coefficient of friction the wire by force, to avoid wire lantern, to protect the wire and release the tension wheel uniform wire. While the whole weight, smaller in size and lower cost.

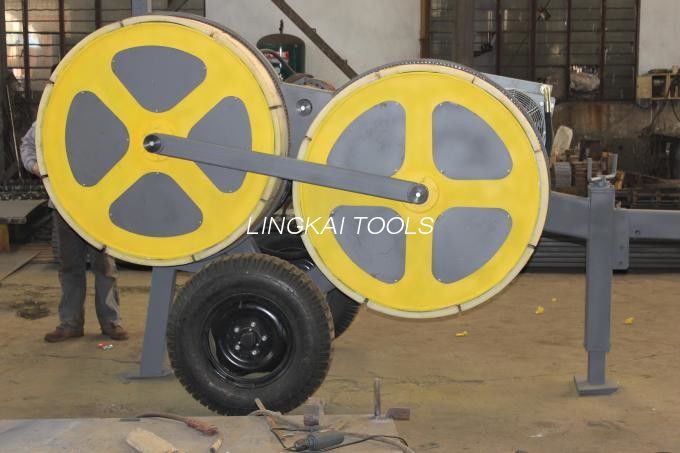

30KN Stringing Hydraulic Puller Tensioner For OPGW ADSS Transmission Project 0

Principle:

30KN Hydraulic Cable Tensioner Used For OPGW ADSS Transmission Project
Automatic hydraulic tensile machine manufacturer in Germany ZECK Features: Each friction wheel is driven by a hydraulic motor planetary gear transmission efficiency, frustrated not stop and then start producing sheet when the wire damage. Friction wheel with a special pad to protect the wires, replace the easy life assurance work up to 1200 hours. Patents have ground and pressure line features automatic rope fixed.

Application:

30KN Hydraulic Cable Tensioner Used For OPGW ADSS Transmission Project

30KN Hydraulic Wire Conductor Tensioner Used in 220KV Overhead Line Transmission is used to string various conducts and earthwire.

Technical Data:

30KN Hydraulic Cable Tensioner Used For OPGW ADSS Transmission Project

Model Type YQZ30
Overall Size(MM) 3560 ×1600 ×2220
Weight(KG) 1700
Max Tension(KN) 30
Max Continual Tension(KN) 25
Max Velocity(km/h) 5
Diameter of Tension wheel(mm) 1200
Solt No. of Tension wheel 5
Rated Pulling Force (KN) 30
Max Pulling Speed(km/h) 5 km/h
Max dia of wire Φ32mm
Engine Power 11KW/ 2200 r/min
Voltage 12V

Feature:

30KN Hydraulic Cable Tensioner Used For OPGW ADSS Transmission Project

1. Bullwheel with wearproof MC nylon lining segments.

2. infinitely variable tension control and constant tension conductor stringing .

3. it adapt Italian reducer .

4. spring applied hydraulic released brake acts automatically in case of hydraulic

failure to ensure safety

Main component:

30KN Hydraulic Cable Tensioner Used For OPGW ADSS Transmission Project

1. Engine :Domestic water –cooled engine .

2. Main pump/motor ,Chinese famous branded pump and motor .

3. Reducer :RR(Italian )

4. Radiator: AKG

5. Hydraulic instrument : WIKA

6. It can choose import engine.

30KN Stringing Hydraulic Puller Tensioner For OPGW ADSS Transmission Project 1
