Product Details:
Payment & Shipping Terms:
|
| Model: | JJM1C | Engine: | Diesel |
|---|---|---|---|
| Name: | Cable Pulling Winch | Pulling Force: | 10 KN |
| Reverse: | 12 M/min | Weight: | 50 Kg |
| High Light: | gasoline powered winch,portable capstan winch |
||

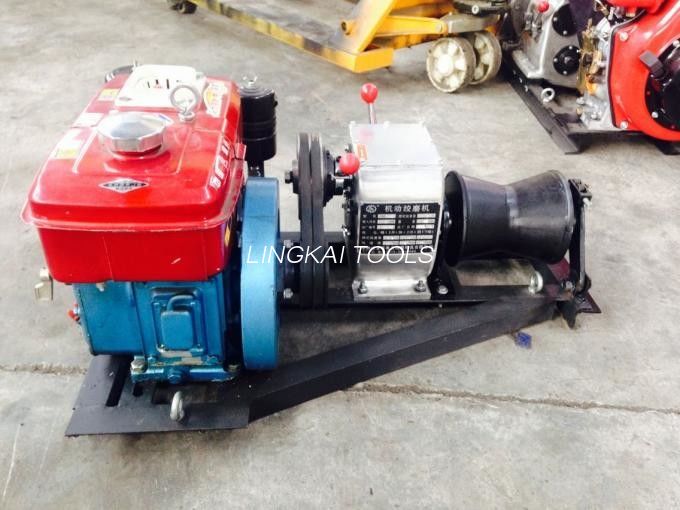

Portable 1T Diesel Engine Cable Pulling Winch With Water Cooled Diesel Engine
Diesel Engine Cable Pulling Winch Technical Data
| Model NO. | Engine | Gear | Pulling Speed(m/min) | Rated Pulling Force(Ton) | Weight(Kg) |
| JJM1 | Yamaha engine 4 HP | (Slow) | 10.0 | 0.8 | 36 |
| (Fast) | 15.0 | 0.6 | |||
| Reverse | 12.0 | No Lifting! | |||
| Electric motor | (Slow) | 10.0 | 0.8 | 48 | |
| (Fast) | 15.0 | 0.6 | |||
| Reverse | 12.0 | No Lifting! | |||
| Diesel motor | Slow | 10.0 | 0.8 | 50 | |
| Fast | 15.0 | 0.6 | |||
| Reverse | 12.0 | No Lifting! |
Power Construction Cable Winch Puller With Water Cooled Diesel Engine Application
It is used for tower erection,pole setting,stringing wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
About the Cable Puller Winch
Structure
1. roller wheel
2. transmission
3. diesel or gasoline engine
4. the base frame composition
5. Motor cutter grinding works:
winch is used to pull the slot groove rope connected directly to gasoline or diesel engine, electric motor as the driving force,after shifting box of gear to achieve the required speed, the machine is located on steel, ro. bust and easy to move.
Transmission and Brake System
Portable 1T Diesel Engine Cable Pulling Winch With Water Cooled Diesel Engine
1. Belt driven transmission
2. Automatic clamp brake
and clutch brake transmission interlock two brakes are braking action in positive and negative directions.
