Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: JJM3C
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Wooden case
Delivery Time: 8-15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets / month
Model: |
JJM3C |
Name: |
Diesel Powered Winch |
Type: |
Cable Winch Puller |
Pulling Speed(m/min): |
Slow 5m/min |
Reverse: |
5m/min |
Model: |
JJM3C |
Name: |
Diesel Powered Winch |
Type: |
Cable Winch Puller |
Pulling Speed(m/min): |
Slow 5m/min |
Reverse: |
5m/min |
3 Ton Hoist diesel engine winch for Erection Towers During Transmission Line

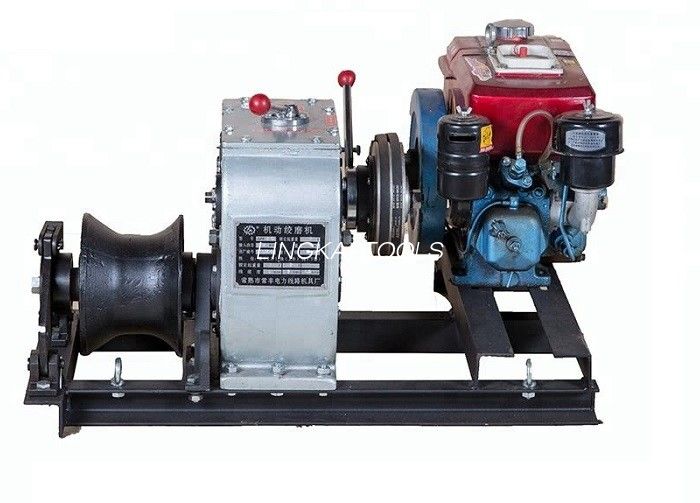

3 Ton Single Capstan Diesel Cable Pulling Winch For Tower Erection Introduction
Cable winch is an essential part of the erection of the underground cable lines, vertical bars and other construction products, can be in a variety of complex environment to facilitate the smooth and convenient erection of wire lifting, traction or tight line.
cable winch is composed of a roller wheel, gearbox, diesel machine and a base frame, the mobile cutter grinding principle: cutter grinding groove is used to directly and the steel wire rope is connected with the traction grooved to a diesel engine, as power, after transmission gearbox to hit the speed requirements, machine is located in steel structure, stable and convenient to move.
Application 3 Ton Hoist diesel engine winch for Erection Towers During Transmission Line
Extensively applied to an under construction set of electric power, post and tele wire ways to tower group sets up the pole.Apply to use in the wild non-transformer station, it will be convenient and agility.
Technical Data of 3 Ton Single Capstan Diesel Cable Pulling Winch For Tower Erection
| Model Type | Engine Power | Gear | Pulling Speed(m/min) | Line Pull(Ton) |
| JJM3C | Diesel Engine | Slow | 5 | 3 |
| Quick | 12 | 1.8 | ||
| Reverse | 5 | No lifting |
Please click below picture to find the video about application method
