Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: JJM3D
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Wooden case
Delivery Time: 8-15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets / month
Model: |
JJM3D |
Name: |
Electric Cable Winch |
Engine: |
Electric Powered |
Pulling Force: |
30 KN |
Apply: |
Underground Power Site |
Using: |
Pulling |
Model: |
JJM3D |
Name: |
Electric Cable Winch |
Engine: |
Electric Powered |
Pulling Force: |
30 KN |
Apply: |
Underground Power Site |
Using: |
Pulling |

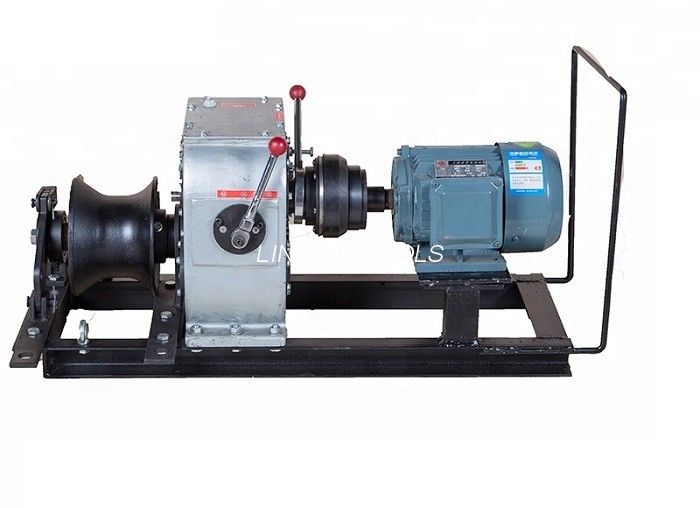

Cable Pulling Tools 3 Ton 220 Volt Electric Engine Powered Cable Winch
Technical Data Cable Pulling Tools 3 Ton 220 Volt Electric Engine Powered Cable Winch
| Model Type | Engine Power | Gear | Pulling Speed(m/min) | Pulling Force(Ton) |
| JJM3-D | Electric Engine | Slow | 4 | 3 |
| Quick | 7 | 1.8 | ||
| Reverse | 4 |
Electric winch is powered by motor. The power is input into the third level enclosed gear reduction box by flexible coupling to lift weight or pull by wire rope and to drive the drum from Low speed shaft end steel key. We use common motor when we need to lift or pull small weight. Conversely, lifting motor is adapted. The common motor can start directly. But the lifting motor starts slowly and stably by cam switch and resistanceadjusting.The brake system adopts electromagneticbraking or hydraulic braking.
Application Cable Pulling Tools 3 Ton 220 Volt Electric Engine Powered Cable Winch
It is used in power transmission and distribution engineering, telephone construction tower erection, traction cable, line, hoisting tools or heavy objects, the electric winch is driven by a belt, effectively prevent the damage of overload, there are pros and cons and the speed of file, anti reverse gear moment to ensure construction safety.
Winch can be modified as per requirement, such as changing curve capstan into straight even
cylindrical shape and coming with steel rope.
Characteristic Cable Pulling Tools 3 Ton 220 Volt Electric Engine Powered Cable Winch
1. Small Volume & Compact Structure.
2. Light Weight,Easy to Transport.
3. High Efficiency,Save Labor.
4. Widely Used,pulling,hoisting,lifting and so on.
5. Safe & Reliable,Interlock Brakes System.
How to order?
| Step 1 | Contact Us |
| Show Us Item Name, Colors, Quantity and Details / Requirements | |
| Step 2 | Make a Performa Invoice for you |
| Step 3 | Performa Invoice Confirm and Payment |
| Step 4 | Production and Shipment |
Our Service:
High quality fasteners products with best price;
Many years excellent experience with pre-sale and after-sale service;
Strict quality control according to your requirement;
Professional packing team keep every pack safely;
Send you some free samples along with your cargo to share us quality;
