Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SFJ
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Wooden case
Delivery Time: 8-15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets / month
Model: |
SFJ |
Name: |
Gsoline Pulling Winch |
Type: |
Cable Puller Winch |
Load: |
1,2,3T |
Motor Engine: |
Gasoline Power |
Weight: |
Light Weight |
Model: |
SFJ |
Name: |
Gsoline Pulling Winch |
Type: |
Cable Puller Winch |
Load: |
1,2,3T |
Motor Engine: |
Gasoline Power |
Weight: |
Light Weight |

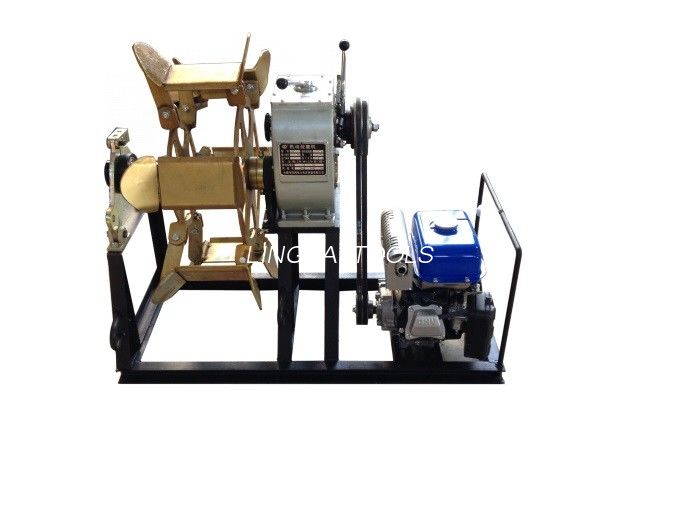

30KN Cable Pulling Wire Rope Winch / Wire Winch With Gasoline Engine
Cable Pulling Wire Rope Winch / Wire Winch With Gasoline Engine Technical Data
Product No. | Model Type | Rated Load(KN) | Pulling Speed(m/min) | Motor Power | Weight(kg) |
80038 | SFJ-10 | 10 | 13.3-24.3 | Gasoline engine | 160 |
80039 | SFJ-20 | 20 | 7.5-14 | Gasoline engine | 180 |
80040 | SFJ-30 | 30 | 7.5-28 | Gasoline engine | 185 |
Introduction:
30KN Cable Pulling Wire Rope Winch / Wire Winch With Gasoline Engine is used for tower erection,pole setting,stringing wire in electrical power line construction.Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
Light weight:For example, the weight of 5 ton gasoline engine powered winch is 88 kgs. Equipped with diesel engine or motor, the winch is 160 kg. Equipped with imported gasoline engine, the winch is only 82 kg, which is very convenient transported. They are especially suitable for line construction in water area and mountain. String machine equipped with a small capstan, can also be used for a vertical rod, wire. One machine with two function in the wildfield helps to reduce crop losses.The machine has the interlocking brake device, accurate positioning, excellent braking performance , flexible usage, safety and trust.
FAQ:
1. Are you a manufacturer or a trading company?
We are a professional fasteners manufacturer with rich experience. And in order to do business with your company well, we established a branch to open the foreign trade fields.
2. Do you offer free samples?
We can provide free samples below 10 USD and you should pay the freight. After you place an order, we will give back the freight.
3. Do you accept our design on products or boxes?
Yes. We accept customized design and we have a professional design team who can design products based on your requirements.
4. How long is your delivery time?
Generally 7-10 days if the goods are in stock or 15-30 days not in stock.In a word, according to the order quantity.
Factory price
We are the trading company with our own directly factory. So you can get high quality products with factory price. For big order and regular Customers, we give favorable discounts.
Feedback:
Your satisfaction and positive feedback is very important to us. If you have any problems with our Tools or services, please feel free to contact us. We will do our best to solve any problems and provide you the best customer services
