Metric Marked Electrical Cable Pulling Tools Precise Dimension Fiberglass Rodder

Product Details

Place of Origin: NINGBO

Brand Name: Linkai

Certification: ISO CE

Model Number: Duct Rodder

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Get the latest

Packaging Details: Carton packing

Delivery Time: 5-8 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 1000sets/month

Get Best Price
Product Details
High Light:

electrical wire pulling tools

,

stringing pulling tools

Name:
Fiberglass Rodder
Apply:
Pulling Cable Line
Color:
Orange
Length:
250mm
Diameter:
8 Mm
Structure:
Wheel Frame
Name:
Fiberglass Rodder
Apply:
Pulling Cable Line
Color:
Orange
Length:
250mm
Diameter:
8 Mm
Structure:
Wheel Frame
Product Description

Metric Marked Precise Dimension Electrical Cable Pulling Fibergrass Rodder



Fibergalss duct rodder, Conduit good help has the galvanzied strengthened frame, with customized Europe stryle.

The Corroison resiststant accessories,never drop copper head, and Alkali-free glass fiber material, strong and tough, High quality modified ABS coating, smooth and sun bearable.

We supply 4.5 mm to 16 mm rodders for cable laying even the conduit diameter from 50 mm to 450 mm.

With the help of accessories conduit cleaner, rodder can make the cleaner job so easy.

Traceable duct rodder help you find blocker by its detectable founction.

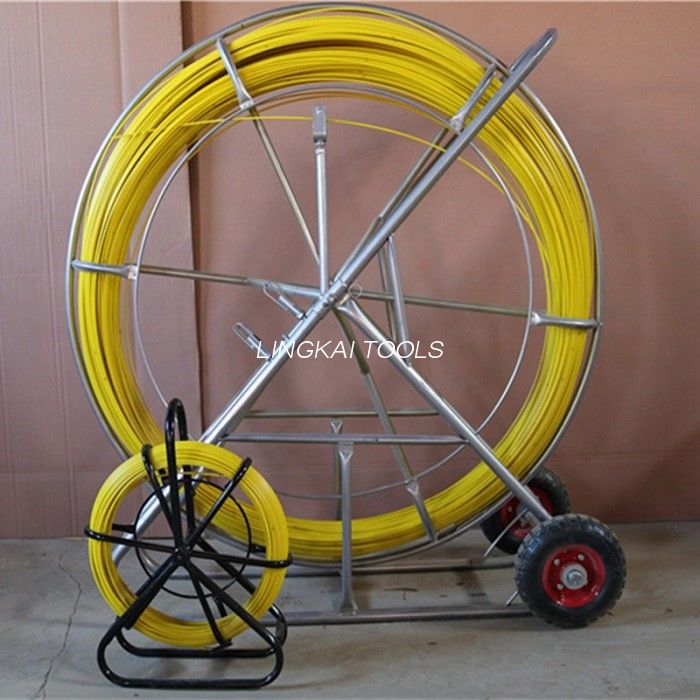

Metric Marked Electrical Cable Pulling Tools Precise Dimension Fiberglass Rodder 0

Duct Push Rodder

Specification Rod Diameter (mm) Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16,
Rod Length (m) 30~500
Frame Spec.(mm) 1300x450x1330,1200x420x1220,980x350x1000,680x240x700, etc
Wheel Diameter(mm) 300mm
Wall thickness of Metal Frame 2.2mm
Color blue, yellow, red, white etc
Material Rod Inner Extruded by fiber glass and high strength resin at high temperature
Rod Outer High Density polyethylene coating
Iron Frame Steel with high-temperature sprayed plastic or Spray coating
Wheel rubber
Brake Yes
Drawing head copper
Physical Character Density 150g/m
Working temperature -40°C to +80°C
Breaking tension 4.5T
Bending Radius 295mm
Technology Pultrusion
Packing Inside plastic woven strip wind around the frame
Outside Wooden pallet and Wooden box

How to Choose Quality Duct Rodder?

Metric Marked Electrical Cable Pulling Tools Precise Dimension Fiberglass Rodder 1 Metric Marked Electrical Cable Pulling Tools Precise Dimension Fiberglass Rodder 2 Metric Marked Electrical Cable Pulling Tools Precise Dimension Fiberglass Rodder 3

1) Copper head protect the end of rod from wear and expand lifetime of rodder

2) Tubular steel alloy and powder coated for corrosion resistance.

3) Precise dimension of the rod is most important specifications of duct rodder.

Metric Marked Electrical Cable Pulling Tools Precise Dimension Fiberglass Rodder 4 Metric Marked Electrical Cable Pulling Tools Precise Dimension Fiberglass Rodder 5Metric Marked Electrical Cable Pulling Tools Precise Dimension Fiberglass Rodder 6

4) we produce fiberglass rod with copper or steel wire for increase toughness.

5) When rodder come to long length a heavy weight, a frame with rubber wheels will make it convenient like driving.

6) Metric marked will show you the distance of conduit.

Metric Marked Electrical Cable Pulling Tools Precise Dimension Fiberglass Rodder 7 Metric Marked Electrical Cable Pulling Tools Precise Dimension Fiberglass Rodder 8

7) Minimum bending radius show the capacity when passing through narrow conduit.

8) While pushing the duct rod, we should tighten the hand brake to stop the cage from rolling
