Product Details:
Payment & Shipping Terms:
|
| Name: | Cable Ground Roller | Roller: | Nylon Oraluminum Alloy |
|---|---|---|---|
| Weight: | 5.2 Kg | Tube Dia: | 100 Mm |
| Model: | SHB | Feature: | Lockable |
| High Light: | cable pulling device,cable pulling accessories |
||

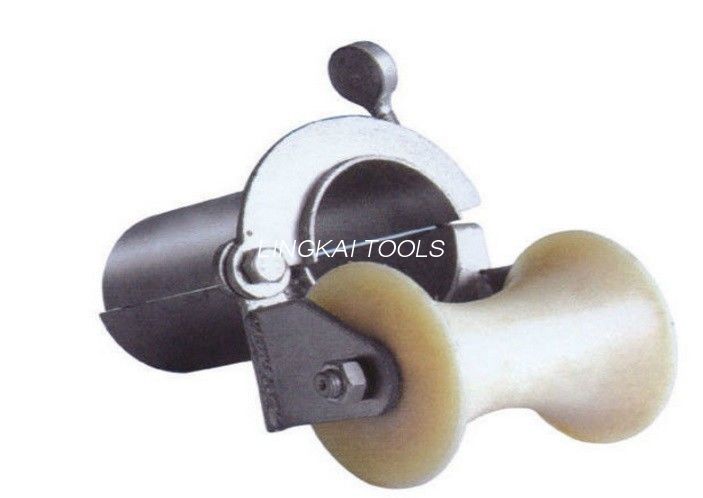

Conduit Cable Laying Guide Rollers Bell Mouth Roller Split Lock Cable Rollers
Conduit cable laying guide roller, bell month roller, spcificaiton.
| Model | Tube diameter(mm) | Weight(kg) |
| SH80B | 80 | 4.3 |
| SH90B | 90 | 4.9 |
| SH100B | 100 | 5.2 |
| SH130B | 130 | 6.3 |
| SH150B | 150 | 7.6 |
| SH180B | 180 | 10 |
| SH200B | 200 | 12 |
Split lock cable roller it is used for pulling underground cables.The roller can be placed in tube entrance at arbitrary angle, lockable. And the wheel is made of nylon.
Feature
1. Roller fitted to the outside of the steel bellmouth to further assist in reducing friction on the cables
2. Steel bellmouth fits directly into the duct and secures with a bolt
3. Cable slides through the bellmouth to protect the rim of the duct and minimizes damage to the cable
