Product Details:
Payment & Shipping Terms:
|
| Model: | SHC100C | Tube Dia: | 100mm |
|---|---|---|---|
| Using: | Protecting Cable | Apply: | Underground Site |
| Weight: | 20 Kg | Material: | Nylon |
| High Light: | electrical wire pulling tools,conductor pulling tools |
||

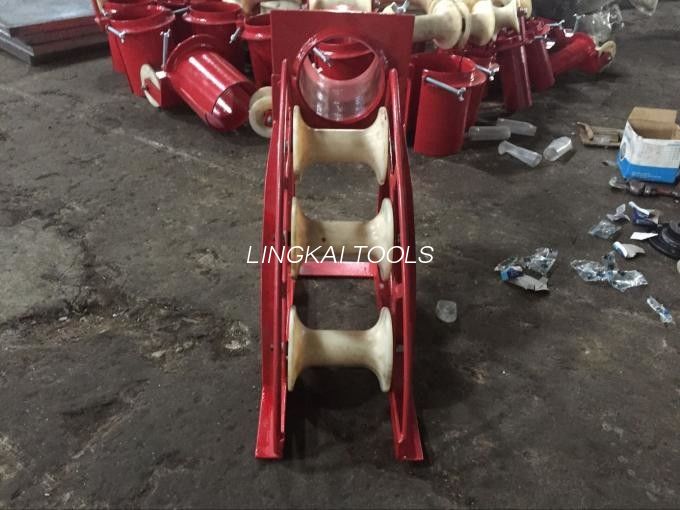

B Series Cable And Rope Entrance Protection Trench Roller Cable Guide Roller
Application Cable And Rope Entrance Protection Trench Roller Cable Guide Roller
B Series lead in cable entrance protection roller with three nylon wheels is used for pulling underground cables.It has three rollers which are made of nylon.The curvature radius is 450mm.The roller can be placed in the tube orifice at arbitrary angle,lockable.
Technical Data
B Series SH150C Cable Pulling Pulley Block Guide Roller Nylon Wheel
| Model | Tube diameter(mm) | Weight(kg) |
| SH80C | 80 | 17 |
| SH90C | 90 | 18 |
| SH100C | 100 | 20 |
| SH130C | 130 | 20.5 |
| SH150C | 150 | 21 |
| SH180C | 180 | 22 |
| SH200C | 200 | 23 |
Pictured: Trench Cable Rollers
Cable rollers should always be used when pulling cables.
Straight cable runs are pulled in using straight cable rollers suitably placed in the cable trench to prevent the cable being dragged on the trench bottom or in mud.
Cable roller spacing is dependent on cable type being laid and the cable pulling tension along the route. Leading cable rollers are used to support the cable over the entire drum width immediately before being pulled into the trench.
Cable laying applications with bends in the route require skid plates of a radius greater than the cables minimum dynamic bending radius.
