Product Details:
Payment & Shipping Terms:
|
| Name: | Hydraulic Cable Cutter | Model: | QY48 |
|---|---|---|---|
| Out Put: | 20T | Oil L: | 0.3L |
| Cutting Range: | <48mm Dia | Apply: | Cutting Wire Rope |
| High Light: | hydraulic cable crimping tool,hydraulic wire crimping tool |
||

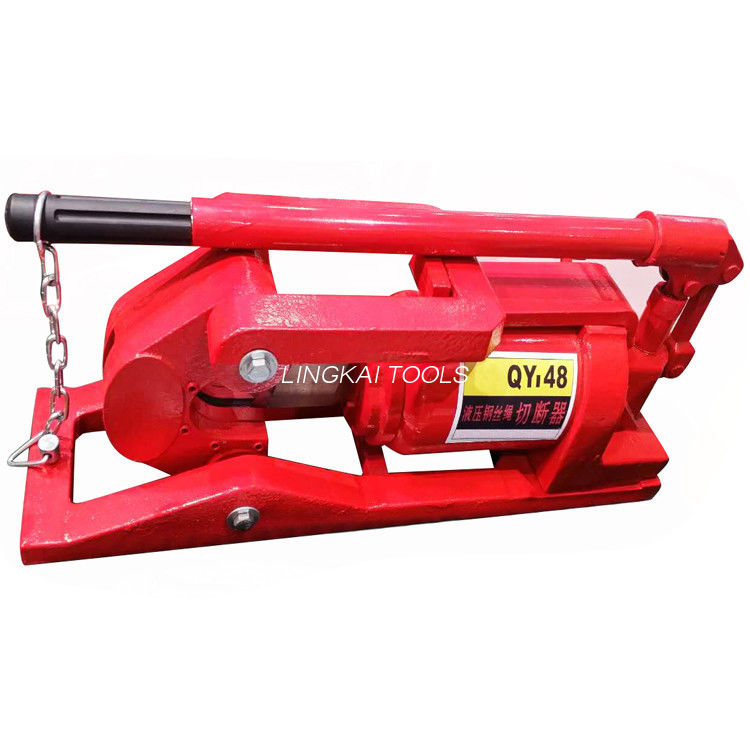

QY48 Hydraulic Wire Rope Cutter Rigging Wire Rope Cutter
Hydraulic steel rope cutter Description:
Hydraulic Wire Rope Cutter:
Designed for manually cutting wires with hydraulic power.Gives a clean cut with a few strokes of the
handle without requiring any outside power.
Can be carried to the job and placed anywhere, no firm base is required.Essential for cutting and
splicing wire rope .
Rigging Wire rope cutter Main Parameter:
| Model | QY30 | QY48 |
| Cut biggest diameter of wire rope | 30mm | 48mm |
| Piston proceeding | ≥38mm | ≥60mm |
| Power proceeding | 10mm | 8.8mm |
| The biggest shear force | 7.5Ton | 20Ton |
| Oil capacity | 0.19L | 0.3L |
| Hand shank force | ≤25kgf | ≤39kgf |
