Galvanized Steel Transmission Line Stringing Tools Head Boards Three Bundles Conductors

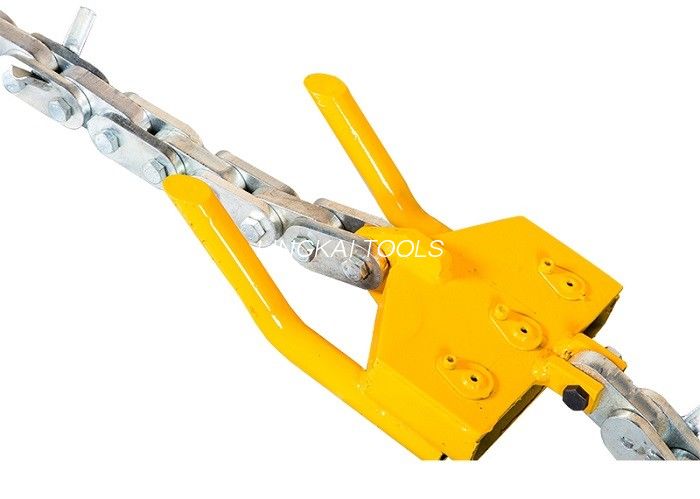

Large Image : Galvanized Steel Transmission Line Stringing Tools Head Boards Three Bundles Conductors

Product Details:

Place of Origin:	NINGBO CHINA
Brand Name:	Linkai
Certification:	ISO CE
Model Number:	SZ2,SZ3

Payment & Shipping Terms:

Minimum Order Quantity:	2SETS
Price:	Get the latest
Packaging Details:	Carton,wooden case
Delivery Time:	5-8work days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Material:	Galvanized Steel	Model:	SZ2,SZ3
Rated Load:	8T,13t	Feature:	Balancing Head Board
Weight:	17,90kg	Certifaication:	ISO CE
High Light:	transmission line tool , cable pulling tools

High Tensile Galvanized Steel Head Boards for Two or Three Bundles Conductors

Running board for two/2 or three/3 bundles conductors is specifically designed to connect the pulling rope, with 2 or 3 bundled conductors.

Running board for two/2 or three/3 bundles conductors

Running board for two/2 or three/3 bundles conductors is specifically designed to connect the pulling rope, with 2 or 3 bundled conductors.The equipment includes the necessary rope lengths and swivel joints; quantity and models are indicated in the following tables. Special models with different characteristics can be designed according to customers' requirement.

Running board for two/2 or three/3 bundles conductors

Ordernumber	Model	Ratedload (kN)	Weight(kg)	Widthof tackle wheel	Features
17220	SZ2-8	80	17	75	Independent
17221	SZ2-8A		19	100
17222	SZ2-8B		19.5	110
17223	SZ2A-8	80	90	100	Poisingsheave
17224	SZ2B-13	130	55	110	Independent
17225	SZ2C-13	130	50	110	Independent

·Note: Specify dimension of the tackle in the contract for your need.:

Model SZ3A-10 running board for three bundle conductors (balancing type )

Ordernumber	Model	Ratedload (kn)	Weight(kg)	Width oftackle wheel (mm)	Steelrope length (m)
17228	SAZ3A-10	100	99	100	1×30+1×15

·Note: Specify dimension of the tackle in the contract for your need.
Application: It is used for stringing 2 or 3 bundled conductors, to connect the pilot wire rope with conductors. The vertical heavy links hold running board in horizontal position for correct entrance into stringing blocks. The balance pulley type is normally used for 2 or 3 bundled conductors which are pulled from same bull wheels of tensioner.The running boards are supplied with pulling ropes wivels and conductor swivels to match linepull and tension requirements.
