1.6kg Transmission Line Stringing Tools Sag Tension Stringing Zoom Sagging Visualizer

Name: 1.6kg Transmission Line Stringing Tools Sag Tension Stringing Zoom Sagging Visualizer
Brand: Linkai
SKU: 22151
Price: 1.00 USD
Availability: InStock
Rating: 5 (129 reviews)

Large Image : 1.6kg Transmission Line Stringing Tools Sag Tension Stringing Zoom Sagging Visualizer

Product Details:

Place of Origin:	ningbo china
Brand Name:	Linkai
Certification:	iso ce
Model Number:	22151

Payment & Shipping Terms:

Minimum Order Quantity:	2sets
Price:	Get the latest
Packaging Details:	Plastic box packing
Delivery Time:	5-8workdays
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	1000sets/month

Contact Now

Detailed Product Description

Model:	22151	Name:	Stringing Zoom
Applicable Angle Iron:	<56~125	Weight:	1,6kg
Type:	Transmission Line Tool	Approved:	ISO CE
High Light:	cable pulling tools , transmission tools and equipment

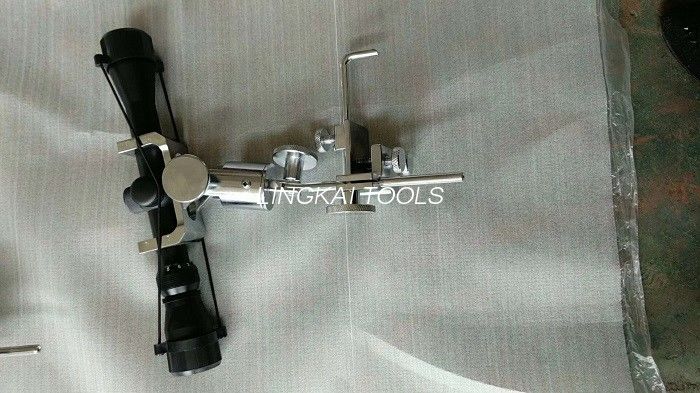

Transmission Line Construction Sag Tension Stringing Zoom Sagging Visualizer

overhead transmission line construction sag tension stringing zoom Sagging visualizer for observing the sagging by fixing the visualizer.

overhead transmission line construction sag tension stringing zoom Sagging visualizer

Zoo sag scope

item no	Magnification factor	Applicable angle iron	Weight (kg)	Remark
22151	4	<56~125	1.6	angle steel on the tower
22181	4	<56~125	0.5	cement pole steel pole
22191	4	<56~125	0.6	angle steel on the tower

Uses: apply to observe the sagging by means of the parallelogram method and different length method, can mount the theodolite on the pylon.

22191: tower mounting adapter

22181: pole mounting adapter.

·Order number: 22151

·Use: For observing the sagging by fixing the visualizer on the iron conner.

·Magnifying times: 4

·Suitable angle iron: ∠56125

·Weight (kg):1.6

Our zoom sag scope has the item number of 22151, which weighs 1.6kg. It can provide up to 4 times magnification. In addition, this product is applicable to the observation of sag by adopting parallelogram method or unequal length method. The theodolite can be fixed on the angle iron of tower.

·Order number: 22181

·Use: For fixing the sagging visualizer on the pole.
