High Tensile Connector Shackle / Galvanized Steel Shackles For Connect Steel Wire

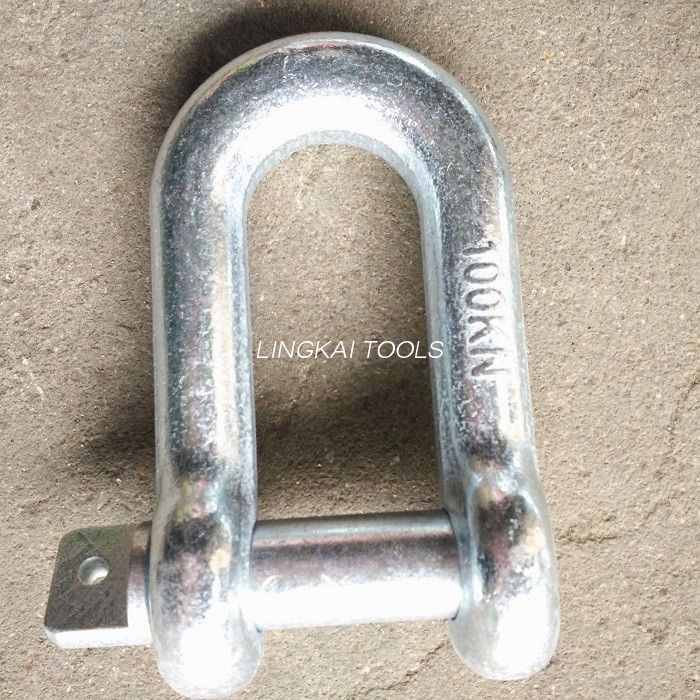

Large Image : High Tensile Connector Shackle / Galvanized Steel Shackles For Connect Steel Wire

Product Details:

Place of Origin:	NINGBO CHINA
Brand Name:	Linkai
Certification:	ISO CE
Model Number:	GXK

Payment & Shipping Terms:

Minimum Order Quantity:	10SETS
Price:	GET THE LATEST
Packaging Details:	WOODEN CASE
Delivery Time:	5-8WORK DAYS
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	10000SETS/WEEK

Contact Now

Detailed Product Description

MODEL:	GXK	ITEM NO:	17131
RATED LOAD:	10~300KN	APPROVED:	ISO CE
WEIGHT:	0.15KG	USE:	CONNECTING TEEL ROPE
High Light:	transmission line tool , transmission tools and equipment

High Tensile Connector Shackle , Galvanized Steel Shackle For Connect Steel Wire

Highly Tensile Galvanized Steel Shackle,Screw pin anchor shackles meet the requirement of Federal Specification RR-C-271D type IVA, Grade A, Class 2.

Highly Tensile Galvanized Steel Shackle

Parameter :

Order number	Model	Mainsize (mm)				Rated load(kN)	Weight (kg)
Order number	Model	A	B	C	D	Rated load(kN)	Weight (kg)
17131	GXK-1	55	42	12	20	10	0.15
17132	GXK-2	67	58	16	24	20	1.29
17133	GXK-3	97	82	20	34	30	0.8
17133A	GXK-3A	97	112	20	34	30	0.9
17134	GXK-5	107	89	22	38	50	1.12
17134A	GXK-5A	107	131	22	38	50	1.29
17135	GXK-8	128	97	30	45	80	2.4
17136	GXK-10	141	114	34	48	100	3.56
17137	GXK-16	152.5	139	37	54	160	4.8
17138	GXK-20	164	140	39	60	200	5.17
17139	GXK-30	186	146	50	68	300	7.5

High Strength Shackle, high strength connect shackle is used for connecting steel rope with loading operation.
Shipment

1. The tools will be shipped in container

2. We will ship the products within one month normally after receiving the payment.

3. Stock is available for standard product.
