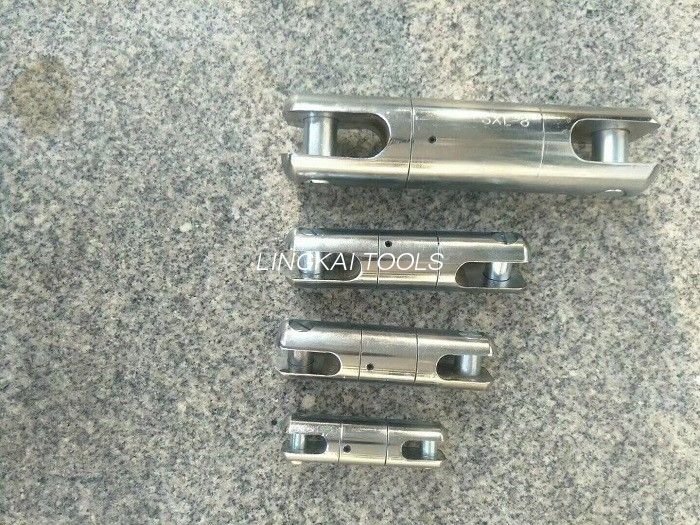

Overhead Line High Pressure Swivel Joints / Transmission Tools And Equipment

Overhead Line High Pressure Swivel Joints / Transmission Tools And Equipment
Overhead Line High Pressure Swivel Joints / Transmission Tools And Equipment

Large Image :  Overhead Line High Pressure Swivel Joints / Transmission Tools And Equipment

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SLX
Payment & Shipping Terms:
Minimum Order Quantity: 10SETS
Price: GET THE LATEST
Packaging Details: WOODEN CASE
Delivery Time: 5-8 WORK DAYS
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000SETS/DAY
Contact Now
Detailed Product Description
MODEL: SLX NAME: SWIVEL JOINT
RATED LOAD: 20KN WEIGHT: 0.4KG
AFTER SERVICE: AVAILABLE APPROVED: ISO CE
High Light:

cable pulling tools

,

transmission tools and equipment

Rated Load 30kN Overhead Line Swivel Joints Transmission Line Stringing Tools



Quick details:
1. Transmission Line Stringing Equipment Accessories & Tools
2. Swivel Joints
3. Rated Load: 30kN
4. Outside Diameter: 37mm

5. Dong Huan Brand



Swivel Joint For Connecting Mesh Sock And Pulling Rope are suitable to connect the pulling rope to the mesh sock joint mounted on the conductors

Swivel Joint For Connecting Mesh Sock And Pulling Rope
Swivel Joint For Connecting Mesh Sock And Pulling Rope are suitable to connect the pulling rope to the mesh sock joint mounted on the conductors; they are mounted on thrust bearings and they are designed to avoid torsion strain accumulation. They are made of highly tensile galvanized steel; the special design can bear the high radial loads, which occur during the passage over the pulleys.

Parameter :
Order
number
 Model Mainsize (mm)
Rated
load(kN)
Weight
(kg)
A B C D E
17121 SLX-0.5 19 61 40 8 9 5 0.2
17122 SLX 35 100 70 12 13 10 0.4
17123 SLX 30 120 90 14 14 20 0.55
17124 SLX 37 129 95 16 16 30 0.65
17125 SLX 42 154 116 18 17 50 1.5
17125A SLX-6.5 51 185 140 20 19 65 2.0
17126 SLX-8 57 220 165 24 22 80 2.4
17127 SL130 62 248 192 26 24 130 3.5
17128 SL180 75 294 222 26 26 180 7.2
17129 SL250 85 331 251 30 30 250 10.6
17130 SL250Y 80 323 243 30 30 250 8.0


Overhead Line High Pressure Swivel Joints / Transmission Tools And Equipment 0

Overhead Line High Pressure Swivel Joints / Transmission Tools And Equipment 1
