U Shape Transmission Line Stringing Tools Anti - Bending Steel Fixed Joints

Product Details

Place of Origin: NINGBO CHINA

Brand Name: Linkai

Certification: ISO CE

Model Number: SLU

Payment & Shipping Terms

Minimum Order Quantity: 10sets

Price: get the latest

Packaging Details: Wooden case

Delivery Time: 5-8 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 1000sets/day

Get Best Price
Product Details
High Light:

transmission line tool

,

transmission tools and equipment

Model:
17111
Name:
Fixed Joints
Type:
Transmission Line Tools
Rated Load:
5T
Out Size:
50mm
Weight:
0.6kg
Model:
17111
Name:
Fixed Joints
Type:
Transmission Line Tools
Rated Load:
5T
Out Size:
50mm
Weight:
0.6kg
Product Description

Rated Load 30kN U-shape Anti-bending Steel Joint Overhead Line Fixed Joints



Quick Information:

1. Transmission line tools and accessories

2. Rated load 50KN

3. Size out size is 50mm

4. Material High galvenzied steel

5. Weight 0.6kg

6. Brand Donghuan

7.U-shape Anti-bending



U-shape anti-bending Highly Tensile steel Joint are used to connect pilot rope lengths or pulling rope lengths and to pass over the puller or tensione

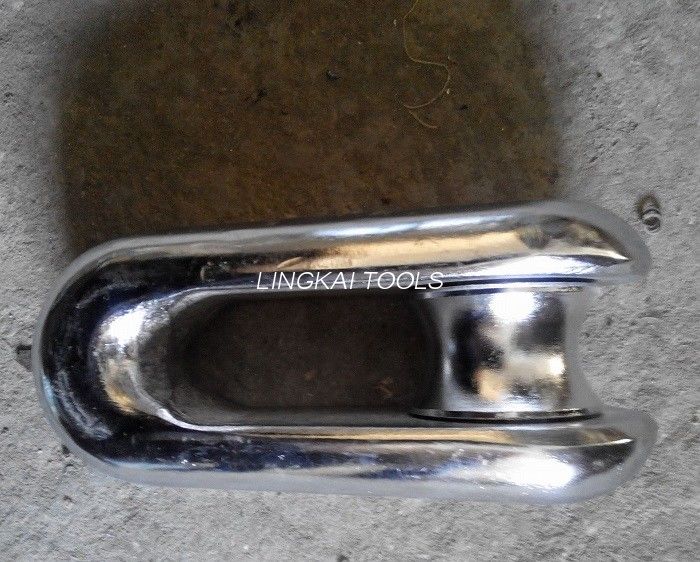

U-shape anti-bending Highly Tensile steel Joint
U-shape anti-bending Highly Tensile steel Joint are specifically designed to connect pilot rope lengths or pulling rope lengths and to pass over the puller or puller-tensioner bull wheels. The special profile minmises the overhead on the rope spliced eyes during this passage. They are made of highly tensile galvanized steel.

Parameter :
Order
number



Model Mainsize (mm)
Rated
load(kN)
Weight
(kg)
A B C D E
17111 SLU-1 36 68 18 14 29 10 0.2
17112 SLU-3 37 76 20 17 31 30 0.22
17113 SLU-5 50 96 23 19 42 50 0.6
17114 SLU-8 58 110 28 25 50 80 0.8
17115 SLU-10 59 126 30 26 54 100 1.2
17116 SLU-13 61 134 32 27 56 130 1.3
17117 SLU-15 63 138 37 28 58 150 1.4
17118 SLU-25 80 178 44 35 72 250 3.0
U Shape Transmission Line Stringing Tools Anti - Bending Steel Fixed Joints 0U Shape Transmission Line Stringing Tools Anti - Bending Steel Fixed Joints 1U Shape Transmission Line Stringing Tools Anti - Bending Steel Fixed Joints 2
