Product Details:
Payment & Shipping Terms:
|
| Material: | Aluimnum Alloy | Cable Diameter: | 15-17mm |
|---|---|---|---|
| Rated Load: | 16kn | Used For: | OPGW Stringing Site |
| Type: | Wire Gripper | Weight: | 5.6kg |
| High Light: | come along clamps,aluminum alloy conductor clamps |
||
16KN Optical Cable Wire Griper Aluminum Alloy Come Along Clamps Wire Grips
Optical Cable Wire Gripper Products:
|
Item number |
(MM) Cable Diameter |
(KN) Rated Load |
(KG) Weight |
| 20101 | Φ8-20 | 25 | 3.8 |
| 20102 | Φ20 | 45 | 3.8 |
| 20103 | Φ11-15 | 16 | 5.6 |
| 20104 | Φ15-17 | 16 | 5.6 |
Configuration: Apply to OPGW construction.
Feature: The main body is made of aluminum alloy and it can protect the OPGW effectively
Explain: OPGW diamter of 20101, is need to indicated when customer place.
Quick Information:

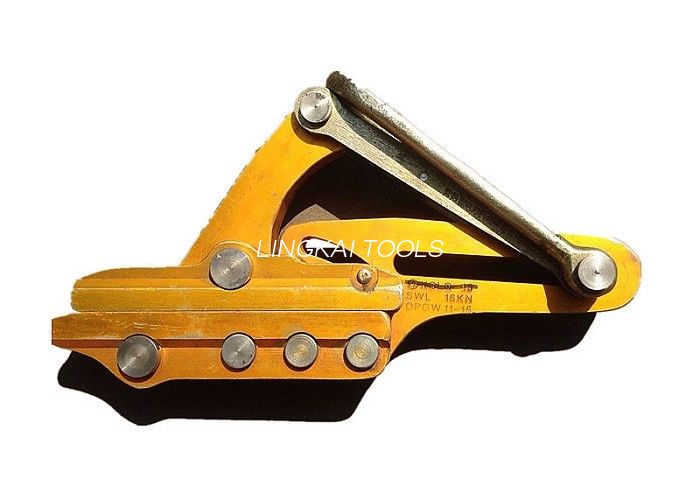

1) 20103 and 20104 type it is the enclosed photo
2) Apply for 15-17 Cable diamter OPGW
3) Optical Cable wire gripper
4) Apply for OPGW Transmission line stringing
5) Donghuan Brand
