Product Details:
Payment & Shipping Terms:
|
| MODEL: | SHCN-2 | RATED LOAD: | 20KN |
|---|---|---|---|
| ASCR: | 35-240MM2 | MATERIAL: | NYLON SHEAVE |
| DIA X Width: | 120X60mm | Weight: | 2.5kg |
| High Light: | cable pulling tools,transmission tools and equipment |
||
SHCN-2 Cross Arm Mounted Stringing Pulley Nylon Sheave Skyward Stringing Block
Skyward String Block Product:
|
Item number |
Model |
Rated load (kN) |
Dia×Width(mm) |
(LGJ) Applicable Conductor ACSR |
Weight (kg) |
Remark |

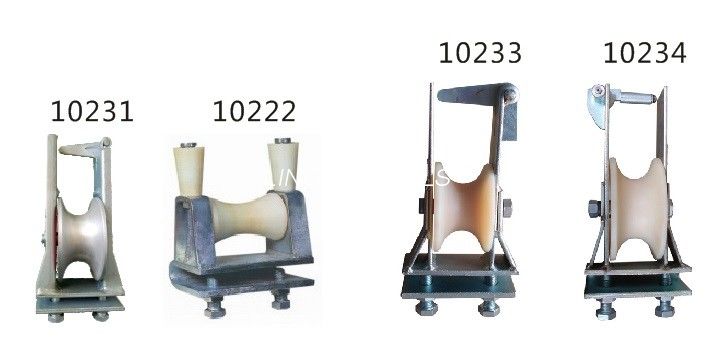

| 10231 | SHC-0.5 | 5 | Φ80X50 | 25-185 | 1.5 |
Aluminium sheave |
| 10232 | SHC-2 | 20 | φ120X60 | 35-240 | 3 | |
| 10221 | SHC-1 | 10 | ≤ 400 | 4 | ||
| 10233 | SHCN-0.5 | 5 | Φ80X50 | 25-185 | 1.1 |
Nylon sheave |
| 10234 | SHCN-2 | 20 | φ120X60 | 35-240 | 2.3 | |
| 10222 | SHLN-1 | 10 | ≤ 400 | 3 |
SHCN-2 Cross Arm Mounted Stringing Pulley Nylon Sheave Skyward Stringing Block
Apply to pull small diameter conductor on the cross arm mounted of straight pole.
Quick Information:
1.Donghuan Brand
2. rated load 20kn
3. applicable for 35-240mm2 LGJ conductor ACSR
4.Wheel Nylon material
5. Overhead stringing blocks
