Product Details:
Payment & Shipping Terms:
|
| Crimping Force: | 100T | For: | ACSR1440 |
|---|---|---|---|
| Height: | Approx 370mm | Crimping Type: | Hexa Head |
| Stroke: | 24mm | Crimping Range: | 14-76mm |
| High Light: | hydraulic cable crimping tool,hydraulic crimping tool for electrical cables |
||

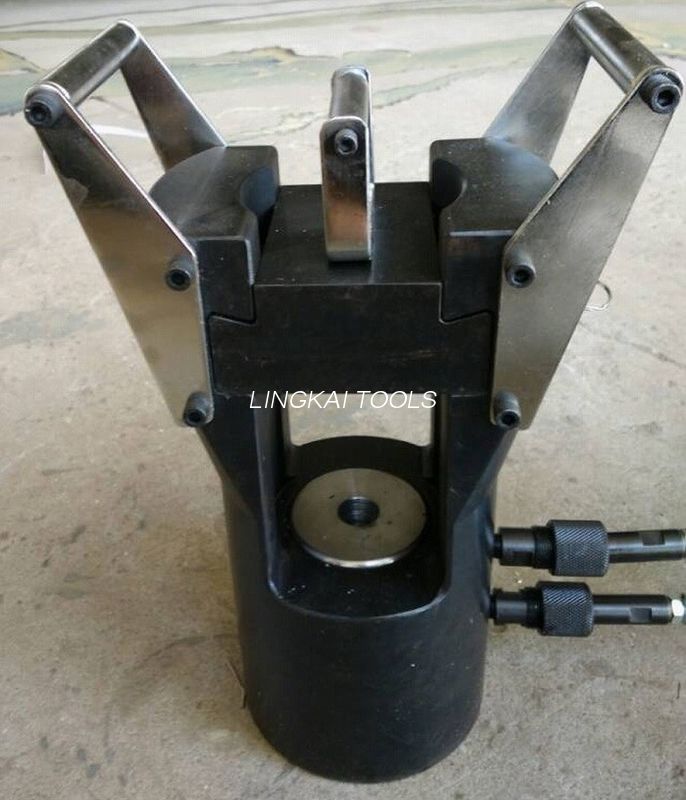

Hydraulic Compressor Hydraulic Crimping Tool with Gasoline Engine 100 Tons 200 Tons
Split-type Hydraulic Crimping Pliers Production:
|
Item number |
16103 | 16103A | 16104 | 16105 | 16106 |
|
Model |
YJD-600 | YJD-1000 | YJD-1250 | YJD-2000 | YJD-3000 |
|
Crimping force |
60T | 100T | 125T | 200T | 300T |
|
Crimping range |
14-55mm | 14-76mm | 14-76mm | 14-90mm | 14-100mm |
|
Crimping type |
hexagon crimping |
hexagon crimping |
|||
|
Stroke |
24mm | 24mm | 35mm | 35mm | |
|
Heigth |
approx.370mm | approx.480mm | |||
|
(KG) Weight |
approx.N.W20KG G.W30KG |
approx.N.W30KG G.W40KG |
approx.N.W50KG G.W60KG |
approx.N.W85KG G.W95KG |
approx.N.W120KG G.W130KG |
|
Package |
wooden case | wooden case | |||
Hydraulic Compressor Hydraulic Crimping Tool with Gasoline Engine 100 Tons 200 Tons
100T Working with an electric hydraulic pump or a petrol power hydraulic pump ( 80 MPa )
200T needs Hydraulic pump should be the rapid super high pressure hydraulic pump (double stage pump out put)
QY 100 and QY 200 Hydraulic crimping machines with crimping head for aluminum stube and steel tube
1, 100T for terminal LGJ 720, and 200T for LGJ1440
2. Dies can be accordingly made per demands
3. We have the std die spe list, pls freely tell us, and Tech will give you best options.
4. Hydraulic crimping pliters, Donghuan Brand.
