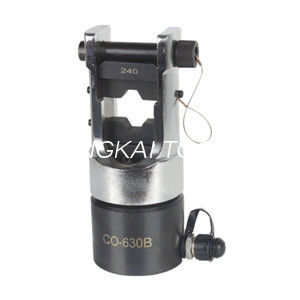

CO-630 Hydraulic Crimping Tool Hexagon Hydraulic Compressor 30T Crimping Force

Product Details

Place of Origin: NINGBO CHINA

Brand Name: Linkai

Certification: ISO CE

Model Number: CO-630B

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Get the latest

Packaging Details: Wooden case

Delivery Time: 3-5 workdays

Payment Terms: T/T, L/C, Western Union

Supply Ability: 1000sets/day

Get Best Price
Product Details
Highlight:

hydraulic cable crimping tool

,

hydraulic wire crimping tool

Model:
CO-630B
Crimping Force:
30T
Crimping Range:
150-630mm2
Name:
Hydaaulic Cable Crimping Tools
Head:
Hexagon
Stroke:
24mm
Model:
CO-630B
Crimping Force:
30T
Crimping Range:
150-630mm2
Name:
Hydaaulic Cable Crimping Tools
Head:
Hexagon
Stroke:
24mm
Product Description

CO-630B hydraulic cable crimping tools, motorized hydralulic compressor, hydraulic crimping head

1. Donghuan Brand

2. Crimping force 30T

3. Crimping range 150-630mm2

4. Die can accordingly made

5. Hydraulic crimping head for Hexagon

6. Work wiht 70Mpa Hydraulic pump

Crimping Form Hexagon Hydraulic Compressor CO-630 30T Crimping Range 150-630mm2



Crimping Form Hexagon Hydraulic Compressor CO-630 30T Crimping Range 150-630mm2

Item number

16101 16101A 16101B 16101C

Model

CO-630B CO-630A CO-1000 CO-400

Crimping

force

300KN 350KN 550KN 200KN

Crimping

range

150-630mm² 150-630mm² 400-1000mm² 16-400mm²
Crimping

type

hexagon crimping

hexagon crimping

hexagon crimping

hexagon crimping

Dies

150,185,240,300,

400,500,630mm²

150,185,240,300,

400,500,630mm²

400,500,630,

800,1000mm²

16,25,35,50,

70,95,120,150,

185,240,300,400mm²

Stroke

24mm 24mm 26mm 24mm

Heigth

approx.275mm approx.350mm approx.400mm approx.250mm

(KG)

Weight

approx.N.W11.5KG

G.W20KG

approx.N.W16.7KG

G.W25.5KG

approx.N.W32KG

G.W39KG

approx.N.W5.4KG

G.W10KG

Package

wooden case wooden case wooden case paper box



Crimping Form Hexagon Hydraulic Compressor CO-630 30T Crimping Range 150-630mm2

Working with a manual hydraulic pump or an electric hydraulic pump(70MPa)
