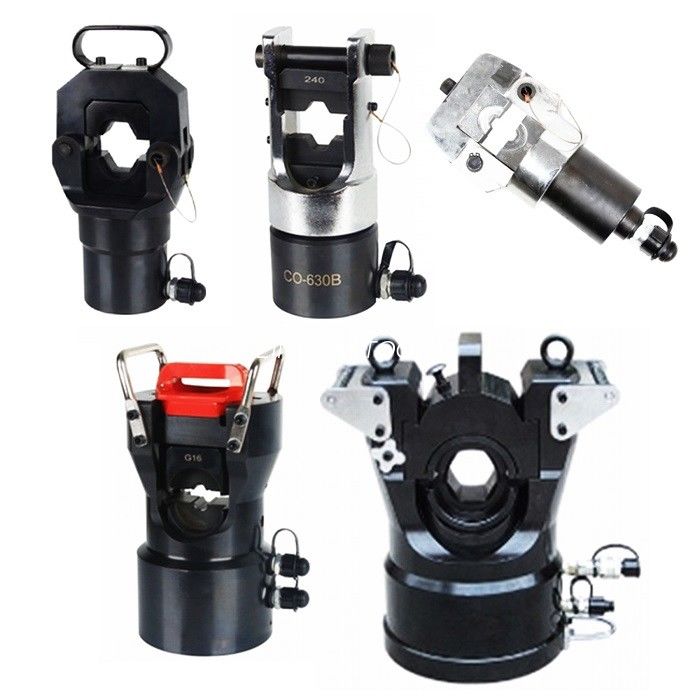

Hexagon Head 20T Hydraulic Crimping Tool CO-400 Motorized Hydraulic Compressor

Name: Hexagon Head 20T Hydraulic Crimping Tool CO-400 Motorized Hydraulic Compressor
Brand: Ningbo Lingkai Electric Power Equipment Co., Ltd.
SKU: CO-400
Price: 100.00 USD
Availability: InStock

Product Details

Place of Origin: NINGBO CHINA

Brand Name: Linkai

Certification: ISO CE

Model Number: CO-400

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Get the latest

Packaging Details: Wooden case

Delivery Time: 3-5 workdays

Payment Terms: T/T, L/C, Western Union

Supply Ability: 1000sets/day

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                hydraulic crimping tool for electrical cables, hydraulic wire crimping tool


Model:	CO-400	Crimping Force:	20T
Crimping Range:	16-400mm2	Name:	Hydaaulic Cable Crimping Tools
Head:	Hexagon	Stroke:	24mm

Model:	CO-400
Crimping Force:	20T
Crimping Range:	16-400mm2
Name:	Hydaaulic Cable Crimping Tools
Head:	Hexagon
Stroke:	24mm

Product Description

Motorized Hydraulic Compressor CO-400 20T Hydraulic Cable Crimping Tools

1. Donghuan Brand

2. Crimping force 20T

3. Crimping range 16-400mm2

4. Die can accordingly made

5. Hydra ulic crimping head for Hexagon

6. Work wiht 70Mpa Hydraulic pump

Motorized Hydraulic Compressor CO-400 20T Hydraulic Cable Crimping Tools

Item number	16101	16101A	16101B	16101C
Model	CO-630B	CO-630A	CO-1000	CO-400
Crimping force	300KN	350KN	550KN	200KN
Crimping range	150-630mm²	150-630mm²	400-1000mm²	16-400mm²
Crimping type	hexagon crimping	hexagon crimping	hexagon crimping	hexagon crimping
Dies	150,185,240,300, 400,500,630mm²	150,185,240,300, 400,500,630mm²	400,500,630, 800,1000mm²	16,25,35,50, 70,95,120,150, 185,240,300,400mm²
Stroke	24mm	24mm	26mm	24mm
Heigth	approx.275mm	approx.350mm	approx.400mm	approx.250mm
(KG) Weight	approx.N.W11.5KG G.W20KG	approx.N.W16.7KG G.W25.5KG	approx.N.W32KG G.W39KG	approx.N.W5.4KG G.W10KG
Package	wooden case	wooden case	wooden case	paper box

Motorized Hydraulic Compressor CO-400 20T Hydraulic Cable Crimping Tools

Working with a manual hydraulic pump or an electric hydraulic pump(70MPa)

Hexagon Head 20T Hydraulic Crimping Tool CO-400 Motorized Hydraulic Compressor 0
