Ningbo Lingkai Electric Power Equipment Co., Ltd. nbtransmission@163.com 86--15958291731
Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: YJD2000
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Get the latest
Packaging Details: Wooden case
Delivery Time: 3-5work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 sets/week
Crimping Force: |
2000kn |
Model: |
YJD2000 |
Item: |
16105 |
Crimping Type: |
Hexa |
Packing: |
Wooden Case |
Weight: |
85kg |
Crimping Force: |
2000kn |
Model: |
YJD2000 |
Item: |
16105 |
Crimping Type: |
Hexa |
Packing: |
Wooden Case |
Weight: |
85kg |

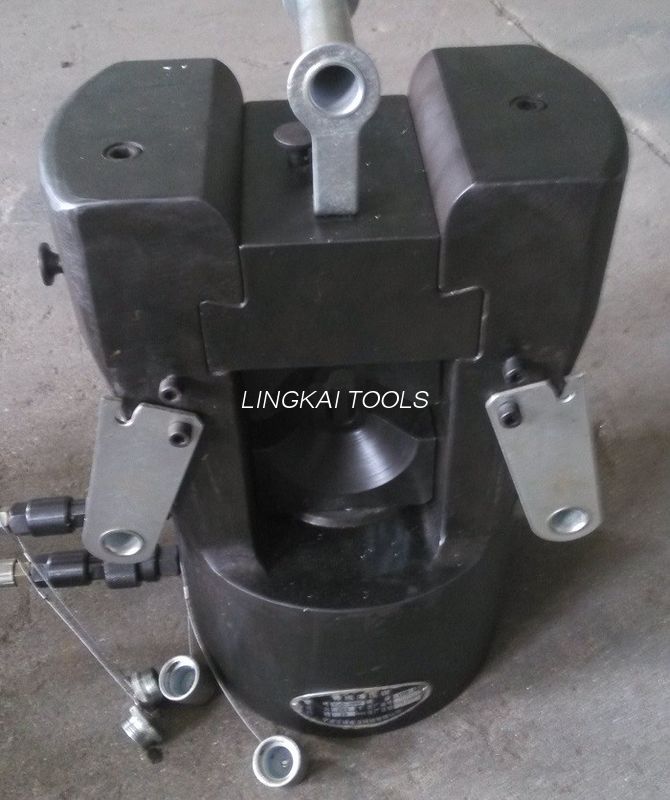

ASCR Conductor Hydraulic Crimping Power Tools 200T Hexagon Crimping Head
200T Hydraulic Press Machine Crimping Form Hexagon Crimping Range 14-90mm
Configuration:Working with an electric hydraulic pump or a petrol power hydraulic pump ( 80 MPa )
Hydraulic pump should be the rapid super high pressure hydraulic pump (double stage pump out put)
Hydraulic Crimping Machine 200T Hydraulic Crimping Head for Crimping ACSR1440
1. Donghuan Brand
2. 200T hydraulic pressing machine
3. Die size can accoridngly make per your drawings
4. work with 80 Mpa hydraulic electrical pump or gasoline pump
5. Hydraulic aluminum tube and steel tube pressing machine
ASCR Conductor Hydraulic Crimping Power Tools 200T Hexagon Crimping Head
|
Item number |
16103 | 16103A | 16104 | 16105 | 16106 |
|
Model |
YJD-600 | YJD-1000 | YJD-1250 | YJD-2000 | YJD-3000 |
|
Crimping force |
60T | 100T | 125T | 200T | 300T |
|
Crimping range |
14-55mm | 14-76mm | 14-76mm | 14-90mm | 14-100mm |
|
Crimping type |
hexagon crimping |
hexagon crimping |
|||
|
Stroke |
24mm | 24mm | 35mm | 35mm | |
|
Heigth |
approx.370mm | approx.480mm | |||
|
(KG) Weight |
approx.N.W20KG G.W30KG |
approx.N.W30KG G.W40KG |
approx.N.W50KG G.W60KG |
approx.N.W85KG G.W95KG |
approx.N.W120KG G.W130KG |
|
Package |
wooden case | wooden case | |||
