Ningbo Lingkai Electric Power Equipment Co., Ltd. nbtransmission@163.com 86--15958291731
Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: ZCB6-5-A3
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: get the latest
Packaging Details: wooden case
Delivery Time: 3-5 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200set/day
Model: |
ZCB6-5-A3 |
Type: |
Single Action |
Weight: |
28kg |
Packing: |
Wooden Case |
Frequency: |
50-60hz |
Name: |
Electric Pump |
Model: |
ZCB6-5-A3 |
Type: |
Single Action |
Weight: |
28kg |
Packing: |
Wooden Case |
Frequency: |
50-60hz |
Name: |
Electric Pump |

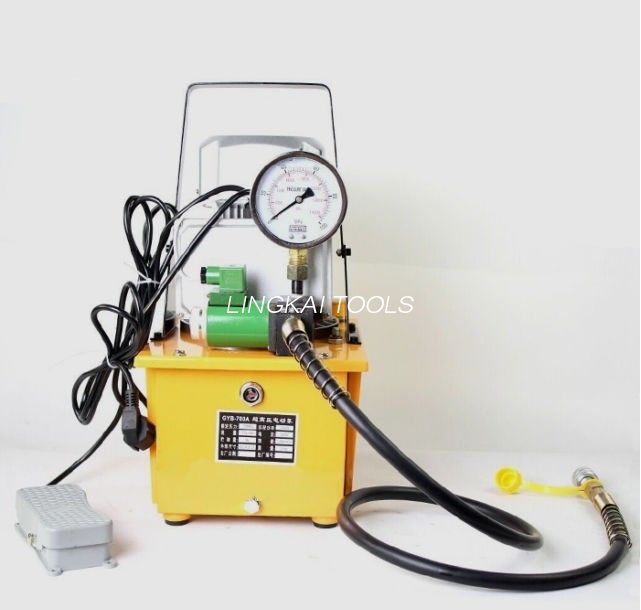

700 Bar High Pressure Electric Hydraulic Pump Power Construction Tools Electric Pump
Protable electric hydraulic pump, electric motor driven hydraulic oil pump
1. Single action pressure electric pump
2. 750W rated output, and 8L oil capacity
3. High pressure is 0.52L/min lower pressure is 2.5L.min
4. working with hydraulic compressor, 60T, 100T
700 Bar High Pressure Electric Hydraulic Pump Power Construction Tools Electric Pump
|
Item number |
16153-1 | 16153-2 |
|
Model |
ZCB6-5-AB | ZCB6-5-A3 |
|
Type |
double-acting | single-acting |
|
Rated Output |
750W | 750W |
|
Voltage |
220W/380W |
220W/380W |
|
Rated Pressure |
70Mpa | 70Mpa |
|
Flow Rate |
low pressure 2.5L/Min | low pressure 2.5L/Min |
| high pressure0.52L/min | high pressure0.52L/min | |
|
Oil Capacity |
8L | 8L |
|
Frequency |
50-60HZ | 50-60HZ |
|
(KG) Weight |
approx.N.W26KG G.W30KG |
approx.N.W26.65KG G.W29KG |
|
Package |
wooden case | wooden case |
50HZ Electric Hydraulic Pump with High Pressure 70Mpa 0.75KW Hydraulic Pump
1. High and low speed two stage design is for quick oil output.
2. Turbine oiil absorption could ensure reaching max effective oil volume.
3. Over pressure safety valve unit could avoid over pressure damage.
4. At 700kg/cm2,automatically release.
