CP-700 Manual Hydraulic Oil Pump , Protable Hydraulic Hand Pump Steel Material

CP-700 Manual Hydraulic Oil Pump , Protable Hydraulic Hand Pump Steel Material
CP-700 Manual Hydraulic Oil Pump , Protable Hydraulic Hand Pump Steel Material CP-700 Manual Hydraulic Oil Pump , Protable Hydraulic Hand Pump Steel Material

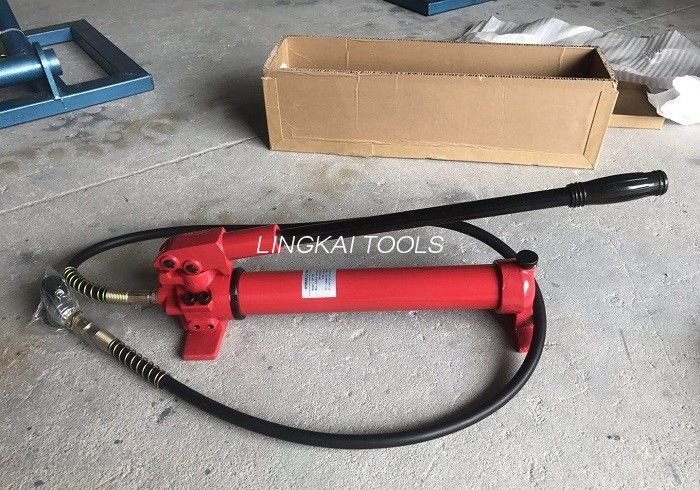

Large Image :  CP-700 Manual Hydraulic Oil Pump , Protable Hydraulic Hand Pump Steel Material

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: CP700
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: get the latest
Packaging Details: paper box
Delivery Time: 3-5work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500sets/day
Detailed Product Description
Low Pressure: 2mpa High Pressure: 70mpa
Type: Hydraulic Pump Low Pressure: 13cc
Type: Hand Pump
High Light:

hydraulic cable crimping tool

,

hydraulic crimping tool for electrical cables

CP-700 Manual Hydraulic Oil Pump Made in Steel Protable Hydraulic Hand Pump



Tools Specification

Application: Supply pressurized oil to compatible tools

Single-Acting Hand Operated

Rated Pressure: 700Bar (10000psi)

Oil Reservoir: 900CC

Working Pressure: Low Pressure 0-20Bar High Pressure: 20-700Bar

Oil Delivery Speed: Low Pressure 12.26cc/stroke High Pressure 2.26cc/stroke.

Tools Feature

Hand operated style: No electric power is needed.

Quick Coupler: For fast connection with compatible tools.

Double Speed Unit: For quick operation. Allow quick oil delivery under no load condition (12.26cc/stroke),

and then bulid sufficient working pressure under losd condition (20-700Bar)

Safty Valve: For safe operation. Automatically relief pressure when rated pressure is reached,

protect hydraulic system from overpressure

Steel Case Package: For easy carrying and protect pumps well during shipping.

Hydraulic Pump Model CP-700 70Mpa High Pressure Hydraulic Hand Pump Manual/Hand Pump

Item number

16164C 16164 16164A 16164B

Model

CP-180 CP-700 CP-700A CFP-800B

Type

hand hand hand foot pump

Max output

pressure

/ low pressure 2Mpa low pressure 2Mpa low pressure 2Mpa
high pressure 70MPa high pressure 70Mpa high pressure 70Mpa high pressure 70Mpa

Output of

the oil

/ low pressure 13cc low pressure 13cc low pressure 13cc
high pressure 1.8cc

high pressure 2.3cc

high pressure 2.3cc high pressure 2.3cc

Oil capacity

350cc 900cc 2700cc 600cc

Direction

of piston

single double double double

(KG)

Weight

approx.N.W9.5KG

G.W10.9KG

approx.N.W9.5KG

G.W10.9KG

approx.N.W14.1KG

G.W15.5KG

approx.N.W9.8KG

G.W10.8KG

(LxWxH)

Measurement

340×60×120mm 700x100x160mm 700x100x200mm 520x160x170mm

Package

paper box paper box paper box paper box


CP-700 Manual Hydraulic Oil Pump , Protable Hydraulic Hand Pump Steel Material 0
