Double Piston Manual Electric Hydraulic Pump CP-700 With Hydraulic Cylinder 1000psi

Product Details

Place of Origin: NINGBO CHINA

Brand Name: Linkai

Certification: ISO CE

Model Number: CP700

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: get the latest

Packaging Details: paper box

Delivery Time: 3-5work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 500sets/day

Get Best Price
Product Details
Highlight:

hydraulic cable crimping tool

,

hydraulic wire crimping tool

Low Pressure:
2mpa
High Pressure:
2.3cc
Type:
Hydraulic Pump
Low Pressure:
13cc
Direction Of Piston:
Double
Material:
Steel
Low Pressure:
2mpa
High Pressure:
2.3cc
Type:
Hydraulic Pump
Low Pressure:
13cc
Direction Of Piston:
Double
Material:
Steel
Product Description

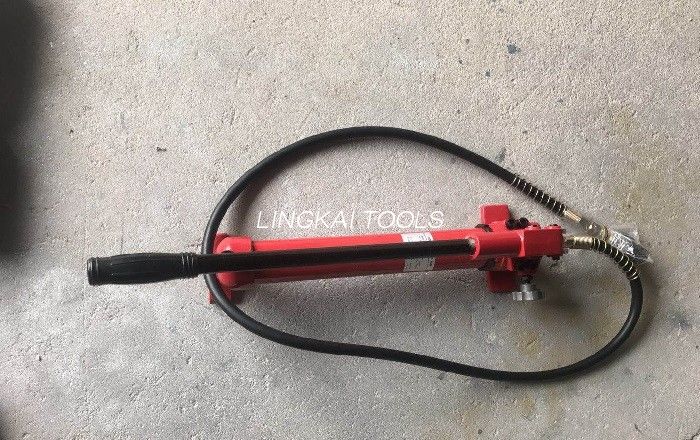

CP-700 High Pressure Manual Hydraulic Pump with Hydraulic Cylinder 1000psi



CP-700 High Pressure Manual Hydraulic Pump with Hydraulic Cylinder 1000psi

Hand operated style: No electric power is needed.

Quick Coupler: For fast connection with compatible tools.

Double Speed Unit: For quick operation. Allow quick oil delivery under no load condition (12.26cc/stroke),

and then bulid sufficient working pressure under losd condition (20-700Bar)

Safty Valve: For safe operation. Automatically relief pressure when rated pressure is reached,

protect hydraulic system from overpressure

Steel Case Package: For easy carrying and protect pumps well during shipping.

Hydraulic Pump Model CP-700 70Mpa High Pressure Hydraulic Hand Pump Manual/Hand Pump

Item number

16164C 16164 16164A 16164B

Model

CP-180 CP-700 CP-700A CFP-800B

Type

hand hand hand foot pump

Max output

pressure

/ low pressure 2Mpa low pressure 2Mpa low pressure 2Mpa
high pressure 70MPa high pressure 70Mpa high pressure 70Mpa high pressure 70Mpa

Output of

the oil

/ low pressure 13cc low pressure 13cc low pressure 13cc
high pressure 1.8cc

high pressure 2.3cc

high pressure 2.3cc high pressure 2.3cc

Oil capacity

350cc 900cc 2700cc 600cc

Direction

of piston

single double double double

(KG)

Weight

approx.N.W9.5KG

G.W10.9KG

approx.N.W9.5KG

G.W10.9KG

approx.N.W14.1KG

G.W15.5KG

approx.N.W9.8KG

G.W10.8KG

(LxWxH)

Measurement

340×60×120mm 700x100x160mm 700x100x200mm 520x160x170mm

Package

paper box paper box paper box paper box




CP-700 70Mpa Hydraulic hand pump Specification

Application: Supply pressurized oil to compatible tools

Single-Acting Hand Operated

Rated Pressure: 700Bar (10000psi)

Oil Reservoir: 900CC

Working Pressure: Low Pressure 0-20Bar High Pressure: 20-700Bar

Oil Delivery Speed: Low Pressure 12.26cc/stroke High Pressure 2.26cc/stroke.
