Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO
Model Number: JJCS 50
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Get the latest
Packaging Details: Std exported packing
Delivery Time: 3-5work days
Payment Terms: T/T, L/C, Western Union
Model: |
JJCS50 |
Name: |
Double Drum Winch |
Engine: |
Diesel, Gasoline, Electrical |
Speed: |
2000RPM |
Drum Bottom Of Groove Dia: |
300mm |
Weight: |
700kg |
Model: |
JJCS50 |
Name: |
Double Drum Winch |
Engine: |
Diesel, Gasoline, Electrical |
Speed: |
2000RPM |
Drum Bottom Of Groove Dia: |
300mm |
Weight: |
700kg |
5 Tons Double Capstan Drum Winch with Trailer Match Honda/Yamaha Gasoline Engine
Double Drum Winch
|
Item number |
09151 | 09152 | 09162 | |
|
Model |
JJCS-30 | JJQS-30 | JJCS-50 | |
|
Engine |
Model |
R175A Diesel Engine |
GX270 Gasoline Engine |
S195G Diesel Engine |
| (HP)Power | 6 | 9 | 9 | |
| (RPM)Speed | 2600 | 3600 | 2000 | |
|
(KN) Pull force/ (M/MIN) speed |
Slow |
30/5.7 | 30/7.43 | 50/3.1,40/9.6 |
|
Moderate |
18.9/9.1 | 19.2/11.8 | 45/7.1,17/22.3 | |
|
Fast |
7.6/22.7 | 7.2/31.4 | 33/11.3,10/35.6 | |
|
Reverse |
-/6.5 | -/8.4 | -/7.35 | |
|
(MM) Drum bottom of groove diamete |
Φ230 | Φ230 | Φ300 | |
| (MM)outline size | 1000x670x600 | 1000x670x600 | 2230x1210x1135 | |
| (KG)Weight | 305 | 270 | 700 | |

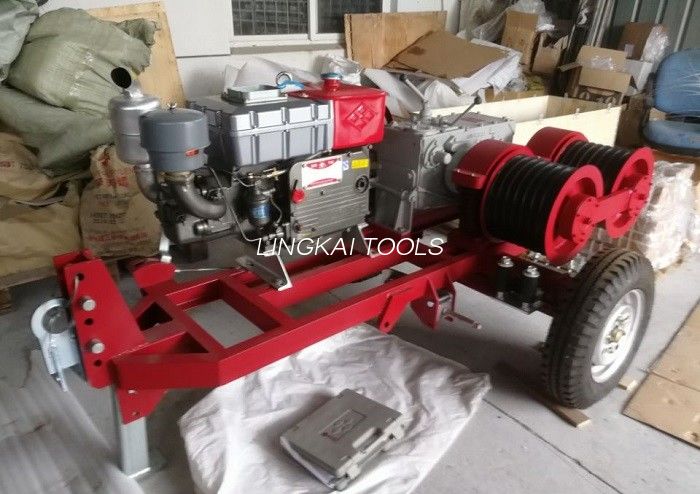

5 tons Honda Yamaha gasoline engine double capstan drum winch with trailer
Uses:Suitable for the construction of the tower line,traction line,tight line operation,laying cable.
Explain:Power can be configured according to used requirements.
Honda Gasoline Winch 5T With Two Cable Drums For Wire Rope Pulling is used for tower erection,pole setting,stringing wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
