Product Details:
Payment & Shipping Terms:
|
| Speed: | 2600RPM | Drum Bottom Of Groove Dia: | 230mm |
|---|---|---|---|
| Weight: | 305kg | Name: | Double Capstan Winch |
| Drum: | Double Drum | Model: | Diesel Engine Or Gasoline Engine |
| High Light: | portable capstan winch,gas powered winch |
||

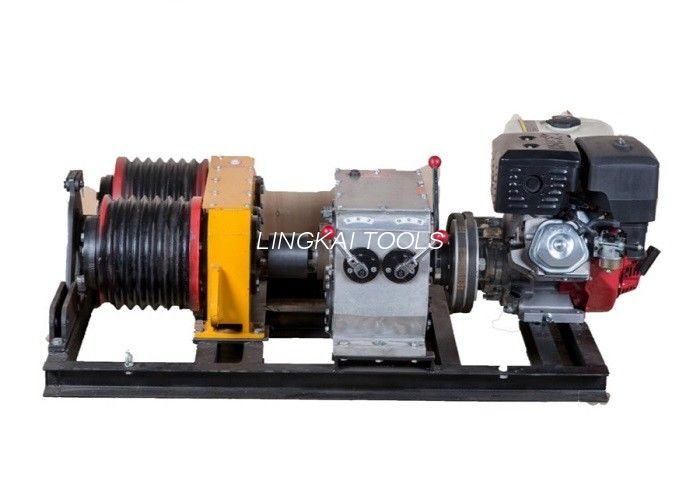

5 Ton Double Capstan Cable Pulling Winch With Honda GX390 Engine 13HP
5 Ton Double Drum portable pulling tugger cable pulling winch
|
Item number |
09151 | 09152 | 09162 | |
|
Model |
JJCS-30 | JJQS-30 | JJCS-50 | |
|
Engine |
Model |
R175A Diesel Engine |
GX270 Gasoline Engine |
S195G Diesel Engine |
| (HP)Power | 6 | 9 | 9 | |
| (RPM)Speed | 2600 | 3600 | 2000 | |
|
(KN) Pull force/ (M/MIN) speed |
Slow |
30/5.7 | 30/7.43 | 50/3.1,40/9.6 |
|
Moderate |
18.9/9.1 | 19.2/11.8 | 45/7.1,17/22.3 | |
|
Fast |
7.6/22.7 | 7.2/31.4 | 33/11.3,10/35.6 | |
|
Reverse |
-/6.5 | -/8.4 | -/7.35 | |
|
(MM) Drum bottom of groove diamete |
Φ230 | Φ230 | Φ300 | |
| (MM)outline size | 1000x670x600 | 1000x670x600 | 2230x1210x1135 | |
| (KG)Weight | 305 | 270 | 700 | |
Application
Honda Gasoline Winch 5T With Two Cable Drums For Wire Rope Pulling is used for tower erection,pole setting,stringing wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
