Product Details:
Payment & Shipping Terms:
|
| Model: | LJS | Rated Load: | 10kn |
|---|---|---|---|
| Name: | Hand Turned Winch | Handspike Hole Dia: | 35mm |
| Weight: | 25kg | Feature: | Light Weight |
| High Light: | gasoline powered winch,portable capstan winch |
||

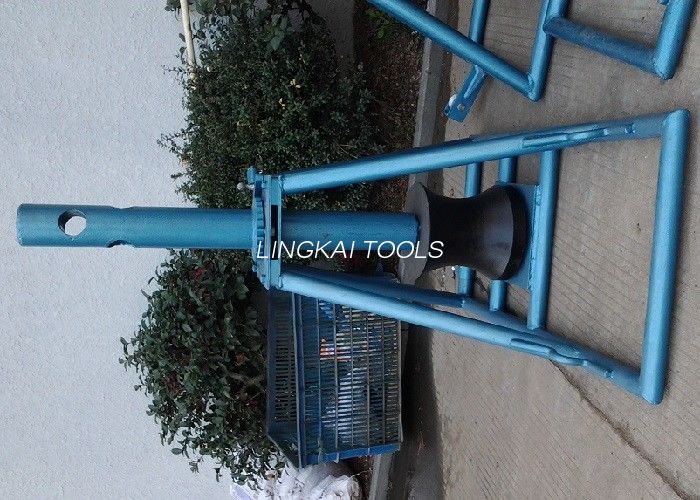

Manually Operated Winch Model LSJ 10KN Hand Turned Winch with Handspike Hold 35mm
This hand turned winch is usually fixed on the ground. The winch handspike is pushed manually.
Main Specifications
| Item Number | Model | Rated Load (kN) | Weight (kg) | Drum bottom of groove diameter(mm | Handspike hole diameter (mm) |
| 09201 | LJS-10 | 10 | 25 | 120 | 25 |
| 09202 | LJS-30 | 30 | 65 | 160 | 65 |
| 09203 | LJS-50 | 50 | 75 | 160 | 75 |
This manul turned winch is used when it fixed on the ground, pushing winch handspike manually. Users should provide the handspike themselves.
It has the light weight, and very easy operation features.
