Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO
Model Number: JJD
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Get the latest
Packaging Details: Wooden case
Delivery Time: 3-5work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/day
Model: |
JJD-5 |
Voltage: |
220V/380V |
Warranty: |
3years |
Electro Motor: |
4KW |
Phase: |
One Or Three |
After Service: |
Availavble |
Model: |
JJD-5 |
Voltage: |
220V/380V |
Warranty: |
3years |
Electro Motor: |
4KW |
Phase: |
One Or Three |
After Service: |
Availavble |

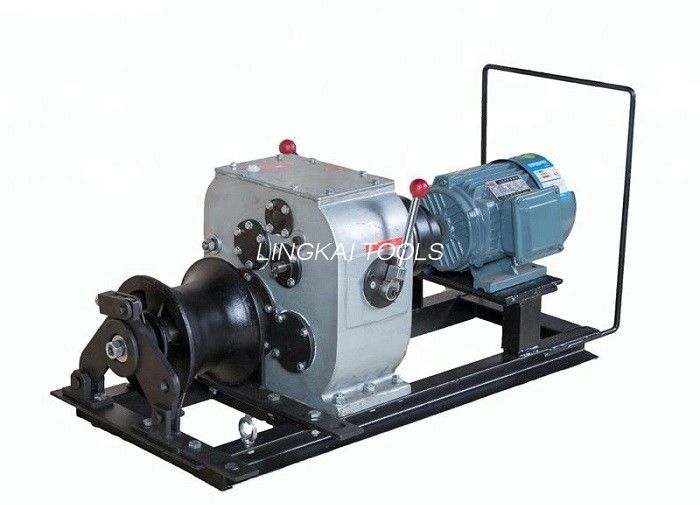

50KN 380V Electric Engine Cable Powered Winch for Pulling and Hoisting
Line Construction Tool Electric Engine Cable Pulling Winch for 5 Ton with 4KW Electromotor
Engine Powered Winch Application
Engine Powered Hoist Winch(With Rope) is used for tower erection, stringing in electric power line construction.
Item number | Model | Rotation | Gear | (RPM) | (M/MIN) | (T) | (KW) | (MM) | (KG) |
| 09121 | JJQ-3Q | corotation | ⅠSlow | 9.0 | 4.0 | 3.0 | 4.04 | 840x450x500 | 82 |
ⅡFast | 16.0 | 6.6 | 1.8 | 780x450x500 | 85 | ||||
reversal | Reverse | 7.5 | 3.3 | No lifting | |||||
| 09121A | JJC-30 | corotation | ⅠSlow | 11.5 | 5.0 | 3.0 | 2.94 | 840x600x500 | 108 |
ⅡFast | 21.0 | 9.0 | 1.8 | ||||||
reversal | Reverse | 10.0 | 4.5 | No lifting | |||||
| 09121B | JJD-30 | corotation | ⅠSlow | 8.5 | 4.0 | 3.0 | 3.00 | 770x600x460 | 108 |
ⅡFast | 10.5 | 6.5 | 1.8 | ||||||
reversal | Reverse | 7.0 | 3.0 | No lifting | |||||
| 09123 | JJQ-50 | corotation | ⅠSlow | 6.5 | 4.0 | 5.0 | 6.61 | 1000x550x520 | 135 |
ⅡFast | 16.0 | 9.0 | 2.2 | ||||||
reversal | Reverse | 7.0 | 4.0 | No lifting | |||||
| 09123A | JJC-50 | corotation | ⅠSlow | 8.0 | 4.5 | 5.0 | 4.41 | 1000x750x600 | 168 |
ⅡFast | 19.0 | 11.0 | 2.3 | ||||||
reversal | Reverse | 10.0 | 5.5 | No lifting | |||||
| 09123B | JJD-50 | corotation | ⅠSlow | 5.5 | 3.5 | 5.0 | 4.00 | 1000x850x520 | 160 |
ⅡFast | 14.0 | 8.0 | 3.0 | ||||||
reversal | Reverse | 7.0 | 4.0 | No lifting | |||||
| 09125 | JJQ-80 | corotation | ⅠSlow | 5 | 3 | 8 | 9.60 | 1000x550x520 | 168 |
ⅡFast | 9 | 5 | 4.5 | ||||||
reversal | Reverse | 5 | 3 | No lifting | |||||
| 09125A | JJC-80 | corotation | ⅠSlow | 7 | 4 | 8 | 7.86 | 1000x750x630 | 230 |
ⅡFast | 13 | 7.5 | 4 | ||||||
reversal | Reverse | 6.5 | 3.7 | No lifting |
5 ton Cable Winch with electric engine for Power Construction
Speedy and Efficient.
Safe and Reliable.
Compact structure.
Small volume.
Light in weight
Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
It has one phase and three phase, and we can refit the specificaiton accordingly,give the best Tech opintios per your site situation.
