Name: | Hydraulic Punching Device | Model: | CH80 |
---|---|---|---|
Punching Force: | 50 Ton | Throat Diameter: | 115mm |
Apply: | Punching Iron And Copper | Moulds: | 4 Sets |
High Light: | hydraulic cable crimping tool,hydraulic crimping tool for electrical cables |

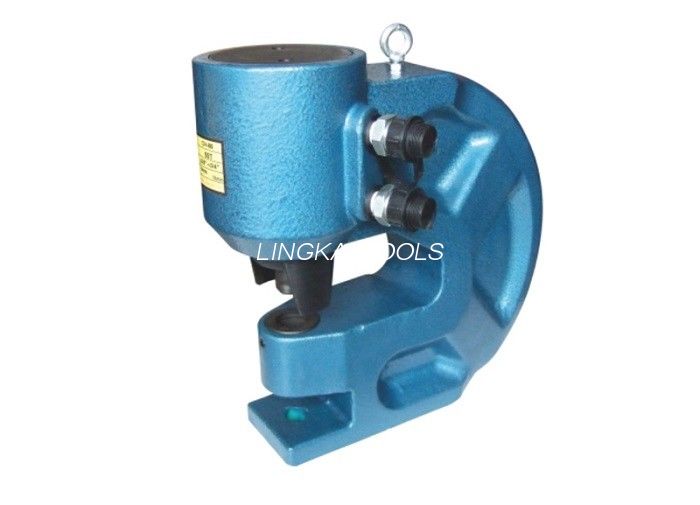

Model CH-80 Hydraulic Puncher For Punching Hole Hydraulic Punching Device
CH-80 Hydraulic Hole Puncher Hydraulic Punching Tools with Punching Force 50T
Item number |
Model |
(KN) Punching force |
(MM) Punching thickness |
(MM) throat diameter |
(MM) Hight |
(KG) Weight |
(MM) specification of matching mold |
hydraulic pump |
06243 | CH-60 |
300 |
iron6 copper10 |
95 | 350 | 19 |
Φ10.5,Φ13.8, Φ17,Φ20.5 |
CP-700/ZCB6-5-A3 |
06244 | CH-70 | 350 |
iron10 copper12 |
110 | 360 | 35 |
Φ10.5,Φ13.8, Φ17,Φ20.5 |
CP-700/ZCB6-5-A3 |
06248 | CH-80 |
500 |
iron16 copper20 |
115 | 340 | 45 |
Φ16,Φ18, Φ22,Φ25 |
ZCB6-5-AB |
06249 | CH-100 | 1000 |
iron18 copper20 |
135 | 400 | 150 |
Φ25,Φ28, Φ32,Φ36 |
ZCB6-5-AB |
Hydraulic Bus bar Hole Punching Tool For Metal Hole Punching CH-80
1. Application: Punch Round Holes on Cu/Al Busbar
2. Punching Capacity: Dia. 16mm-Dia. 25mm
3.Work with ZCB6-5-AB
4. Output: 50T
5. Throat Depth: 115mm
6. Weight: 45kg
7. Package: wooden case
8.Uses:For copper and aluminum and low carbon steel punching, it needs to be equipped with a hydraulic pump.
Explain:The mold size can be customized according to the requirements of the user.
