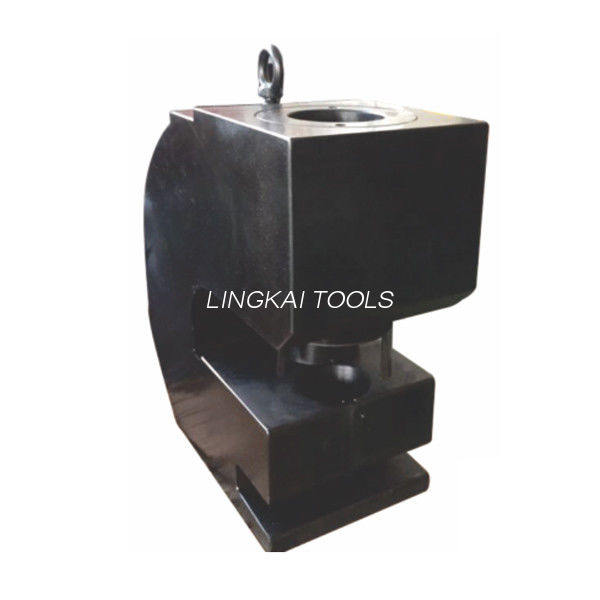

100T Punching Force Hydraulic Hole Punch Machine Along With Electrical Pump

Product Details

Place of Origin: NINGBO CHINA

Brand Name: Linkai

Certification: ISO CE

Model Number: CH100

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Get the latest

Packaging Details: wooden case

Delivery Time: 3-5work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 200sets/day

Get Best Price
Product Details
Highlight:

hydraulic cable crimping tool

,

hydraulic wire crimping tool

Model:
CH100
Punching Force:
100 T
Throat Diameter:
135mm
Height:
400mm
Weight:
150kg
Apply:
Punching Copper And Iron
Model:
CH100
Punching Force:
100 T
Throat Diameter:
135mm
Height:
400mm
Weight:
150kg
Apply:
Punching Copper And Iron
Product Description

Hydraulic Hole Punching Machine Model CH-100 Used Along With Hydraulic Pump



Hydraulic Hole Puncher Hydraulic Punching Tools with Punching Force 50T

Item number

Model

(KN)

Punching

force

(MM)

Punching

thickness

(MM)

throat

diameter

(MM)

Hight

(KG)

Weight

(MM)

specification of

matching mold

hydraulic pump

06243 CH-60

300

iron6

copper10

95 350 19

Φ10.5,Φ13.8,

Φ17,Φ20.5

CP-700/ZCB6-5-A3
06244 CH-70 350

iron10

copper12

110 360 35

Φ10.5,Φ13.8,

Φ17,Φ20.5

CP-700/ZCB6-5-A3
06248 CH-80

500

iron16

copper20

115 340 45

Φ16,Φ18,

Φ22,Φ25

ZCB6-5-AB
06249 CH-100 1000

iron18

copper20

135 400 150

Φ25,Φ28,

Φ32,Φ36

ZCB6-5-AB



CH -60/70/80/100 eyelet punching machine is a remote control tool, works with an external hydraulic pump (Hand Foot or Electric pump). It is designed to punch round holes on Cu/Al Busbar. With 4 pairs standard punching dies (10.5 / 13.8 / 17 / 20.5mm), punching hole size is between diameter 10.5mm and diameter 20.5mm. Busbar thickness should below or equivalent to 12mm. With hydraulic power, 4 pairs sharp punching dies, easy fast and clean punching can be achieved.



Uses:For copper and aluminum and low carbon steel punching,

it needs to be equipped with a hydraulic pump.

Explain:The mold size can be customized

according to the requirements of the user.
