CH100 Hydraulic Hole Punch Machine Fast Speed Accurate Position 400mm Height
CH100 Hydraulic Hole Punch Machine Fast Speed Accurate Position 400mm Height
CH100 Hydraulic Hole Punch Machine Fast Speed Accurate Position 400mm Height

CH100 Hydraulic Hole Punch Machine Fast Speed Accurate Position 400mm Height

Product Details

Place of Origin: NINGBO CHINA

Brand Name: Linkai

Certification: ISO CE

Model Number: CH100

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Get the latest

Packaging Details: wooden case

Delivery Time: 3-5work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 200sets/day

Get Best Price

Product Details

Product Description
Product Details
Highlight:

hydraulic crimping tool for electrical cables

,

hydraulic wire crimping tool

Model:
CH100
Punching Force:
1000kn
Throat Diameter:
135mm
Height:
400mm
Packing:
Wooden Case
Punching:
Cu/Al Busba
Model:
CH100
Punching Force:
1000kn
Throat Diameter:
135mm
Height:
400mm
Packing:
Wooden Case
Punching:
Cu/Al Busba
Product Description

Hydraulic Hole Punching Machine Model CH-100 Used Along With Hydraulic Pump



CH-100 Hydraulic Busbar Hole Puncher for Punching Holes on Cu/Al Busbar with 100Ton

Item number

Model

(KN)

Punching

force

(MM)

Punching

thickness

(MM)

throat

diameter

(MM)

Hight

(KG)

Weight

(MM)

specification of

matching mold

hydraulic pump
06243 CH-60

300

iron6

copper10

 95 350 19

Φ10.5,Φ13.8,

Φ17,Φ20.5

 CP-700/ZCB6-5-A3
06244 CH-70 350

iron10

copper12

 110 360 35

Φ10.5,Φ13.8,

Φ17,Φ20.5

 CP-700/ZCB6-5-A3
06248 CH-80

500

iron16

copper20

 115 340 45

Φ16,Φ18,

Φ22,Φ25

 ZCB6-5-AB
06249 CH-100 1000

iron18

copper20

 135 400 150

Φ25,Φ28,

Φ32,Φ36

 ZCB6-5-AB



FUNCTION:

This machine is a dedicated bus installation, punching machines and tools required to complete pump (manual pump,Treadle pumps,electric
pumps) use.
1. It is designed for punching holes on Cu/AI bus bar.
2. Fast speed punching, accurate position without deviation.
3. AlI kinds of punching dies could be ordered.
4. Hydraulic punching could avoid cutting scraps while punching hole.It is much safer and clearer while operation.
5. Portable unit could be taken to site or fixed in factory for batch punching work.
6. Standard assembling of four dies in 125 28 32 36 mm supplied with the puncher.
7. one packing box, one fixing spanner and one hexagon spanner assemblied.

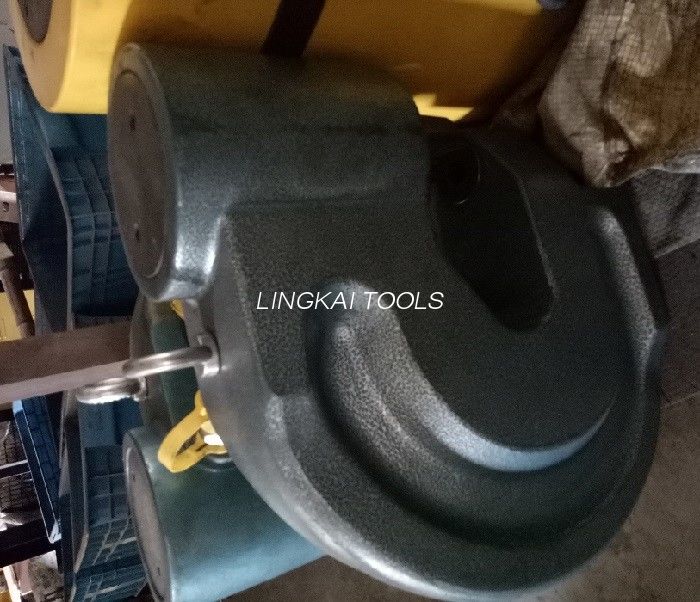

CH100 Hydraulic Hole Punch Machine Fast Speed Accurate Position 400mm Height 0
