Product Details
Place of Origin: ningbo china
Brand Name: Linkai
Certification: ISO
Model Number: EPCB-401
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: get the latest
Packaging Details: wooden case
Delivery Time: 2-4 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100sets/week
Model: |
EPCB-401 |
Name: |
Hydraulic Bus Bar Machine |
Voltage: |
220V 50HZ |
Bedning Force: |
270KN |
Bending Range: |
125x12.5mm Max |
Function: |
Cutting Punching Bending(horizontal And Erective) |
Model: |
EPCB-401 |
Name: |
Hydraulic Bus Bar Machine |
Voltage: |
220V 50HZ |
Bedning Force: |
270KN |
Bending Range: |
125x12.5mm Max |
Function: |
Cutting Punching Bending(horizontal And Erective) |

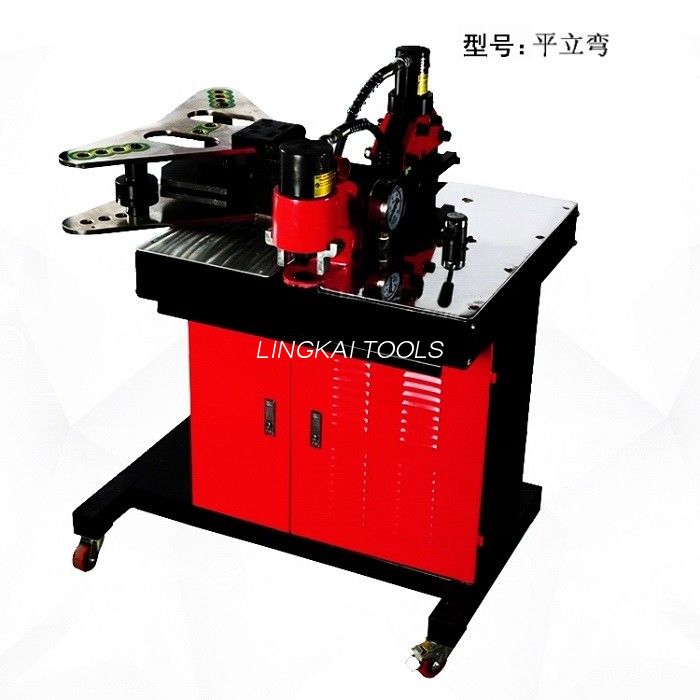

EPCB-401 220V 50HZ Four Function In One Multi-function Busbar Processing Machine
Hydraulic Bus-bar machine
| Item number | 06232 | 06231A | 06231 |
| Model | EPCB-301 | EPCB-401A | EPCB-401 |
| Function |
with three functions,cutting, punching and bending |
punching, bending and crimping |
with Four functions,cutting, punching and bending(horizontal and erective) |
|
Dimension of work table |
approx.690x690x730mm | approx.690x690x730mm | approx.690x690x730mm |
|
Voltage single phase |
220V50HZ | 220V50HZ | 220V50HZ |
|
Rating oil pressure |
700kg/cm2 | 700kg/cm2 | 700kg/cm 2 |
| Bending force | 170KN/200KN | 170KN/200KN | 270KN |
|
Bending range |
150x10mm max/200x12mm max | 150x10mm max/200x12mm max | 125x12.5mm max |
| Cutting force | 200KN/300KN | 200KN/300KN | 200KN/300KN |
| Cutting rang | 150x10mm max/200x12mm max | 150x10mm max/200x12mm max | 150x10mm max/200x12mm max |
| Punching force | 300KN/350KN | 300KN/350KN | 300KN/350KN |
|
Distance from hole to sheet side |
95x110mm max | 95x110mm max | 95x110mm |
| Punch rang |
φ10.5mmΦ13.8mm φ17mmΦ20.5mm |
φ10.5mmΦ13.8mm φ17mmΦ20.5mm |
3/8"(Φ10.5mm),1/2"(φ13.8mm), 5/8"(φ17mm),3/4"(φ20.5mm) |
| Package | wooden case | wooden case | wooden case |
Four in one bus machine EPCB401
Features:
cutting, punching, bending flat stand, the machine and high flexibility, small size and strong function, high productivity and efficiency. Is to produce a large electric control box and transmission and distribution construction works on site an essential tool
Standard equipment:
Electric hydraulic pump, cutting, punching, bending flat, vertical bending tools.
