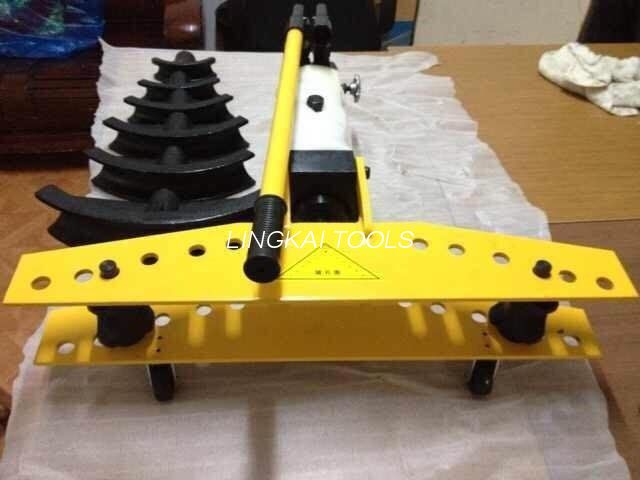

CPB-2 Busbar Processing Underground Cable Tools Bender With Electric Pump

CPB-2 Busbar Processing Underground Cable Tools Bender With Electric Pump

    • CPB-2 Busbar Processing Underground Cable Tools Bender With Electric Pump
    • CPB-2 Busbar Processing Underground Cable Tools Bender With Electric Pump
  • CPB-2 Busbar Processing Underground Cable Tools Bender With Electric Pump

    Product Details:

    Place of Origin: Ningbo china
    Brand Name: Lingsheng
    Certification: ISO
    Model Number: SWG

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: get the latest
    Packaging Details: wooden case
    Delivery Time: 2-4 work days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 100sets/day
    Contact Now
    Detailed Product Description
    Name: Hydraulic Pipe Bender Model: CPB-2
    Out Put: 160kn Stroke: 250mm
    Weight: 40kg Work With: Hydraulic Pump

    CPB-2 Busbar Processing Machine , Hydraulic Pipe Benders Along With Electric Pump



    Hydraulic Pipe Bender

    Busbar Bending Machine , DWG-3D Electric Hydraulic Pipe Bender with Pump

    Item number

    06251 06252 06253 06254 06255
    Model CPB-1 CPB-2 CPB-3 CPB-4 CPB-5

    Cutting force

    100 250 320 380 380

    (MM)

    Stroke

    180 250 320 380 380
    Wall thickness 2-5 2.5-5 2.5-5 2.5-6 2.5-6

    Weight

    18 40 85.5 128.5 177.5

    (rad)

    Bending angl

    π/2≤a<π π/2≤a<π π/2≤a<π π/2≤a<π π/2≤a<π



    (mm)

    Pipe diameter

    Φ13 Φ16

    Φ19 Φ22

    Φ28 Φ34

    Φ22 Φ28

    Φ34 Φ42

    Φ48 Φ60

    Φ22 Φ28

    Φ34 Φ42

    Φ48 Φ60

    Φ75.5 Φ89



    Φ22 Φ28

    Φ34 Φ42

    Φ48 Φ60

    Φ75.5 Φ89

    Φ108

    Φ22 Φ28

    Φ34 Φ42

    Φ48 Φ60

    Φ75.5 Φ89

    Φ108 Φ114

    Features:

    1 Manual hydraulic pipe bender is suit for common water pipe, wire pipe, thick-wall conduit tube, bending the angle with 90º.

    2 1/2”-2” can be shaped 90º one time, for 2 1/2”-4”, pipe must be moved and bended for five times to the demanded radian.

    Function

    1. It is designed for bending bus bar in 125mm used in power generation factory.powertransmission station and copper bus bar and aluminum bus bar.
    2. 2 in l horizontal and erective bending available. lt's really one machine in two function.
    3. The hydraulic cylinder with 35 Ton of outlet force. lt's very powerful in quick speed and high efficiency.
    4. It is made in flip style for easy taking workpiece.
    5. The unit body is made from high tough alloy steel. As a result,it's light weight for carrying conveniently. Bending bus bar smoothly
    6. Ouick coupling for easy load and unload.
    7. Standard and assembling;Horizontal bending die:One moveable die.two errective poles, one adaptor.Erective bending die.one die frame.two big grip plank.two small grip plank.seven crescent die plate,two support for erective bending.

    CPB-2 Busbar Processing Underground Cable Tools Bender With Electric Pump
