Product Details:
Payment & Shipping Terms:
|
| Model: | EP510 | Oil Capacity: | 200cc |
|---|---|---|---|
| Length: | 780mm | Packing: | Paltic Box |
| Crimping Type: | Hexagon Crimping | Name: | Hydraulic Cable Lug Crimping Tools |
| High Light: | hydraulic cable crimping tool,hydraulic crimping tool for electrical cables |
||
EP-510 Quick Pliers Hydraulic Crimping Tool In Electrical 50-400mm2 Copper Tube Crimper Tool

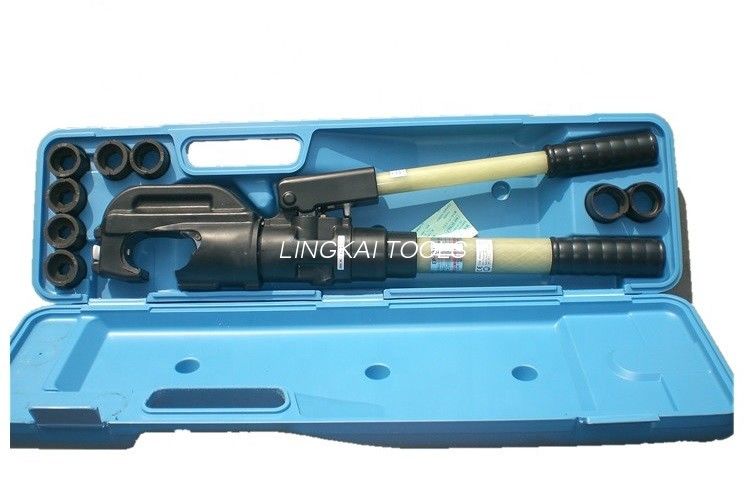

Hydraulic Cable Lug Crimping Tools Model EP-510 For Crimping Terminal 50-400sqmm
50-400mm2 Hexagon Hydraulic Terminal Crimping Or Hydraulic Hand Crimper Or Hydraulic Cable lug Crimping Tool
is used to compress copper and aluminum terminals.The compression mould can be replaced and easy operation.Press tools is suitable for DIN,AWG,JIS.There is a safety protection device of "Kacha"voice when it reaches to the high voltage or low voltage.It can be used in working in the higher levels by one person.It saves time and labor.Pump is connected to the tools,the head of die-casting can be turned 180 degree.
|
Item number |
16199 | 16200 |
|
Model |
EP-430 | EP-510 |
|
Crimping force |
120KN | 130KN |
|
Crimping range |
16-400mm² | 16-400mm² |
| Crimping
type |
hexagon crimping |
hexagon crimping |
|
Dies |
50,70,95,120,150, 185,240,400mm² |
50,70,95,120,150, 185,240,400mm² |
|
Stroke |
32mm | 38mm |
|
(CC) Oil capacity |
145cc | 200cc |
|
Length |
approx.770mm | approx.780mm |
|
(KG) Weight |
approx.N.W7.1KG G.W10.7KG |
approx.N.W7.4KG G.W11KG |
|
Package |
plastic box | plastic box |
