Hexagon Hydraulic Terminal Crimping Tool / Hydraulic Cable Lug Crimping Tool

Product Details

Place of Origin: Ningbo China

Brand Name: Linkai

Certification: ISO

Model Number: EP510

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: get the latest

Packaging Details: Plastic packing

Delivery Time: 2-4 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000pcs/week

Get Best Price
Product Details
Highlight:

hydraulic cable crimping tool

,

hydraulic wire crimping tool

Model:
EP510
Crimping Type:
Hexagon Crimping
Stroke:
38mm
Crimping Range:
16-400mm2
Name:
Hydraulic Hand Crimper
Weight:
7.4g
Model:
EP510
Crimping Type:
Hexagon Crimping
Stroke:
38mm
Crimping Range:
16-400mm2
Name:
Hydraulic Hand Crimper
Weight:
7.4g
Product Description

Hexagon Hydraulic Terminal Crimping, Hydraulic Hand Crimper, Hydraulic Cable lug Crimping Tool



Hydraulic Cable Lug Crimping Tools Model EP-510 For Crimping Terminal 50-400sqmm



Item number

16199 16200

Model

EP-430 EP-510

Crimping

force

120KN 130KN

Crimping

range

16-400mm² 16-400mm²
Crimping

type

hexagon crimping

hexagon crimping

Dies

50,70,95,120,150,

185,240,400mm²

50,70,95,120,150,

185,240,400mm²

Stroke

32mm 38mm

(CC)

Oil capacity

145cc 200cc

Length

approx.770mm approx.780mm

(KG)

Weight

approx.N.W7.1KG

G.W10.7KG

approx.N.W7.4KG

G.W11KG

Package

plastic box plastic box

1. The compression pliers are designed for hydraulic crimping on power cable and wire. The crimped conductor is tested in high conductivity and close contact so that it's uneasy to break out and turn hot .

2. Open cut design for convenient operation.

3. Dies are quickly put on tube by double speed unit. Then compression force lift and automatically change to low speed. The operation finishes with energy saving and time shorten.

4. The head could be rotated 180° freely for narrow space working.

5. Fitted with safety valve, when pressure reaches to limited max. Value pressure release automatically to prevent over pressure.

6. Standard die assembling 50,70,95,120,150,185,240,300,400mm².

7. Fiberglass insulated handles to prevent accidental electrichitting.

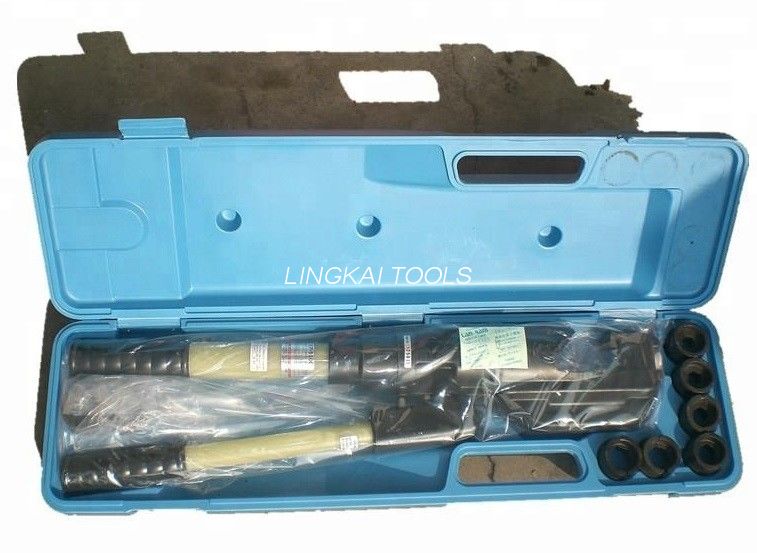

8.Packing case is made form robust integarl plastic box.
