Product Details
Place of Origin: Ningbo China
Brand Name: Linkai
Certification: ISO
Model Number: KYQ-300
Payment & Shipping Terms
Minimum Order Quantity: 2sets
Price: get the latest
Packaging Details: Plastic box
Delivery Time: 1-3 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000sets/week
Model: |
KYQ300 |
Crimping Force: |
100kn |
Crimping Range: |
16-300mm2 |
Crimping Type: |
Hexagon Crimping |
Dies: |
16-300mm2 |
Stroke: |
17mm |
Model: |
KYQ300 |
Crimping Force: |
100kn |
Crimping Range: |
16-300mm2 |
Crimping Type: |
Hexagon Crimping |
Dies: |
16-300mm2 |
Stroke: |
17mm |

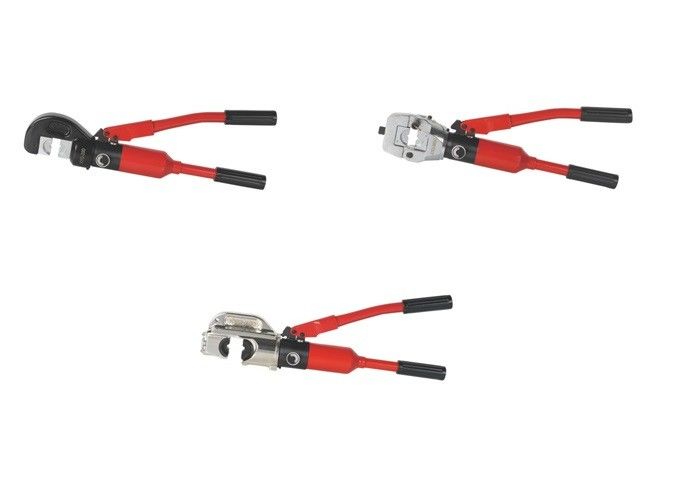

KYQ-300 Hydraulic Cable Terminal Hydraulic Crimping Tool for Crimping16-300 sqmm
Integral Hydraulic Crimping Pliers
|
Item number |
16185 | 16186 | 16186A |
|
Model |
KYQ-400 | KYQ-300 | KYQ-300C |
|
Crimping force |
120KN | 100KN | 100KN |
|
Crimping range |
16-400mm² | 16-300mm² | 16-300mm² |
| Crimping
type |
hexagon crimping |
hexagon crimping |
hexagon crimping |
|
Dies |
50,70,95,120,150, 185,240,300,400mm² |
16,25,35,50, 70,95,120,150, 185,240,300mm² |
16,25,35,50, 70,95,120,150, 185,240,300mm² |
|
Stroke |
32mm | 17mm | 17mm |
|
Length |
approx.540mm | approx.500mm | approx.500mm |
|
(KG) Weight |
approx.N.W6.7KG G.W9.5KG |
approx.N.W4.9KG G.W7.7KG |
approx.N.W4.9KG G.W7.7KG |
|
Package |
plastic box | plastic box | plastic box |
Hydraulic Crimping Tools Type Copper Tube Crimper Tool
1. Design to accommodate hexagonal dies for applying compression lugs to copper, aluminum conductors.
2. Two stage pumping action for rapid ram advance to the connector hold position with minimum pumping action.
3. Manual retraction when the max pressure reached by twisting the handle.
4. The glass fiber operation insulates the stick, can bear the electric voltage 220kv, keeping on the minute.
5. 180° rotatable head.
6. The pressure outside the body adjusts to press the valve, don't need the whole structure to lie down.
