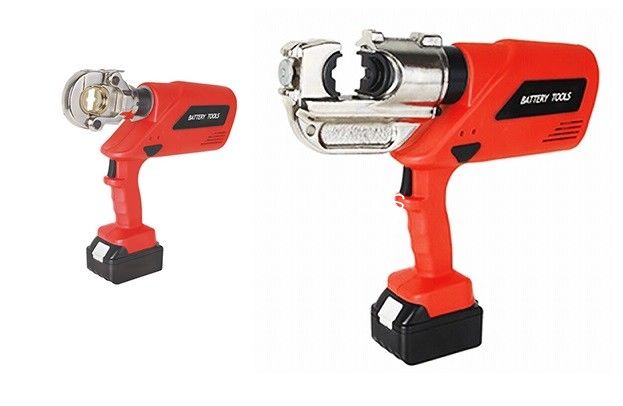

Manual Battery Powered Hydraulic Crimping Tool Cable Lug Crimping Tool 16 - 400mm2

Manual Battery Powered Hydraulic Crimping Tool Cable Lug Crimping Tool 16 - 400mm2

    • Manual Battery Powered Hydraulic Crimping Tool Cable Lug Crimping Tool 16 - 400mm2
    • Manual Battery Powered Hydraulic Crimping Tool Cable Lug Crimping Tool 16 - 400mm2
  • Manual Battery Powered Hydraulic Crimping Tool Cable Lug Crimping Tool 16 - 400mm2

    Product Details:

    Place of Origin: NINGBO CHINA
    Brand Name: Linkai
    Certification: ISO
    Model Number: HT-Z1

    Payment & Shipping Terms:

    Minimum Order Quantity: 2set
    Price: get the latest
    Packaging Details: plastic box
    Delivery Time: 2-3 work days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000sets/week
    Contact Now
    Detailed Product Description
    Model: HT-Z1 Crimping Force: 60KN
    Crimping Range: 16-400mm2 Crimp Charge: 250times(CU150mm2)
    Voltage: 18V Capacity: 3.0Ah
    High Light:

    hydraulic crimping tool for electrical cables

    ,

    hydraulic wire crimping tool

    Manual Battery Powered Hydraulic Crimping Tool Cable Lug Crimping Tool 16-400mm2



    Charging Hydraulic Crimping Pliers

    Item number

    16209A 16209

    Model

    HT-Z1 HT-Z2

    (KN)

    Crimping

    force

    60KN 60KN

    Crimping

    range

    16-400mm² 16-300mm²

    Crimp

    charge

    250times(CU150mm²) 320times(CU150mm²)

    Crimping

    cycle

    3s-6s(depend on the size of cable) 3s-6s(depend on the size of cable)

    Stroke

    35mm 17mm

    voltage

    18V 18V

    Capacity

    3.0Ah 3.0Ah
    Charging

    time

    2hours 2hours

    (KG)

    Weight

    approx.N.W10KG

    G.W17KG

    approx.N.W8KG

    G.W15KG

    Package

    plastic box plastic box

    Configuration:

    Accessories:dies:HT-Z1 16,25,35,50,70,95,120,150,185,240,300,400mm²

    HT-Z2 16,25,35,50,70,95.120,150,185,240,3000mm²

    battery:2pcs Charger:1pcs sealing ring of cylinder:1set

    sealing ring of safety valve:1set

    Feature:

    The head can be rotated at 360 degrees.(HT-Z1/HT-Z2)

    When the joint is completed,the machine will stop and return to the position automatically.

    It can be manually returned when necessary.

    18V,3A lithium battery. One key operation.

    Automatic power off function.

    Manual Battery Powered Hydraulic Crimping Tool Cable Lug Crimping Tool 16 - 400mm2 0

    PLEASE CLICK BELOW PHOTO TO VISIT THE APPLICATION ON OUT YOUTUBE WEBSITE

    Manual Battery Powered Hydraulic Crimping Tool Cable Lug Crimping Tool 16 - 400mm2 1
