Product Details:
Payment & Shipping Terms:
|
| Name: | Splicing Sleeve Straightener | Model: | YJZ20 |
|---|---|---|---|
| Straighten Force: | 20KN | Application Conductor: | LGJ720 |
| Dia Of Splicing Sleeve: | 60mm | Weigt: | 12kg |
| High Light: | hydraulic cable crimping tool,hydraulic wire crimping tool |
||
Splicing Sleeve Straightener For Cover Joint YJZ2 for Max LGJ720 Conductor
Our YJZ2 splice sleeve straightener serves to straighten the bent splice sleeve with its specification of LGJ720 or below after the crimping process. This product weighs 12kg, and its maximum straightening force reaches 20kN. The item number is 17211
|

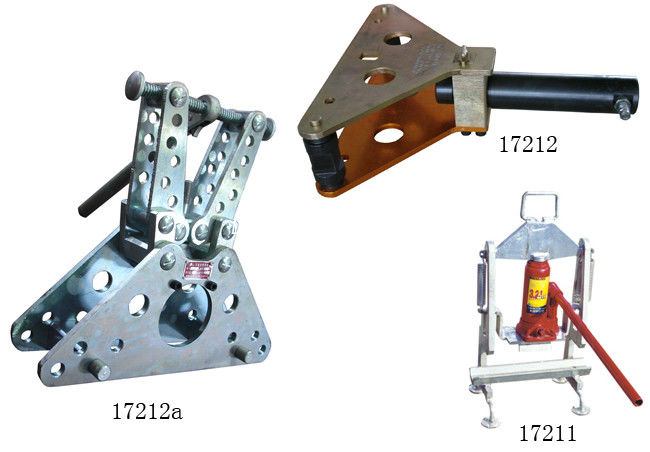

Item number |
17211 | 17212 | 17212A` |
|
Model |
YJZ2 | YJZ3 | YJZ4 |
|
(KN) straighten force |
20 | 50 | 150 |
|
Application conductor |
LGJ720 | LGJ900 | LGJ1250 |
|
Diameter of splicing sleeves(MM) |
Φ60 | Φ68 | Φ80 |
|
(MM) Shape siz |
300X260X507 | 452X391X145 | 400X375X140 |
|
(KG) Weight |
12 | 13.5 | 15.5 |
Configuration: 17212 need to purchase mathched manual pump.
Model YJZ 17211;
Straightener force:20KN
Application conductor LGJ720Max
Dimater of splicing sleeves 60mm
