Product Details:
Payment & Shipping Terms:
|
| Model: | CPC85H | Crimping Force: | 80KN |
|---|---|---|---|
| Cutting Range: | Armoured CU/AL Cable 85mm | Lenghth: | 85mm |
| Packing: | Wooden Case | Weight: | 6.7kg |
| High Light: | hydraulic cable crimping tool,hydraulic wire crimping tool |
||

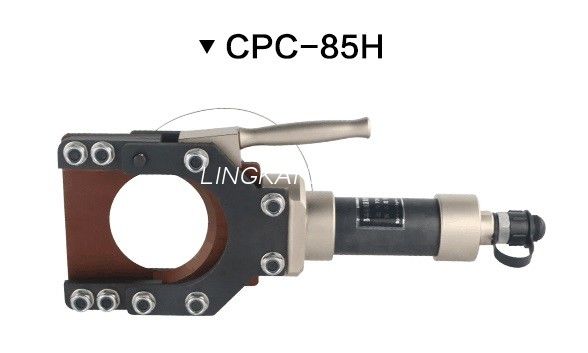

80KN CPC-85 Aluminium Alloy Split Hydraulic Cable Cutter for less than 85mm Armored Cable
Split-type Hydraulic Cable Cutter Use and Characteristic
1 The blade is knock down structure.
2 Used to cut electrial cable,telecommunication cable etc.
3 It is made of aluminium alloy.
|
Item number |
21449D | 21449C | 21449 | 21449A |
|
Model |
CPC-85H | CPC-100B | CPC-130A | CPC-160A |
|
(KN) Crimping force |
80KN | 80KN | 80KN | 80KN |
| Cutting
range |
armored CU/AL cable Φ85mm max |
armored CU/AL cable Φ100mm max |
armored CU/AL cable Φ130mm max |
armored CU/AL cable Φ160mm max |
|
Stroke |
85mm | 100mm | 130mm | 160mm |
|
Length |
approx.480mm | approx.620mm | approx.650mm | approx.750mm |
|
(KG) Weight |
approx.N.W6.7KG G.W9.2KG |
approx.N.W12KG G.W15KG |
approx.N.W13.35KG G.W16.5KG |
approx.N.W15.35KG G.W18.5KG |
|
Package |
wooden case | wooden case | wooden case | wooden case |
Configuration: Working with a manual hydraulic pump or an electric hydraulic pump.
