Product Details:
Payment & Shipping Terms:
|
| Model: | CPC130A | Cutting Range: | Armored CU/AL Cable 130mm |
|---|---|---|---|
| Name: | Cable Cutter | Length: | 650mm |
| Weight: | NG 13.35kg | Packing: | Wooden Case |
| High Light: | hydraulic crimping tool for electrical cables,hydraulic wire crimping tool |
||

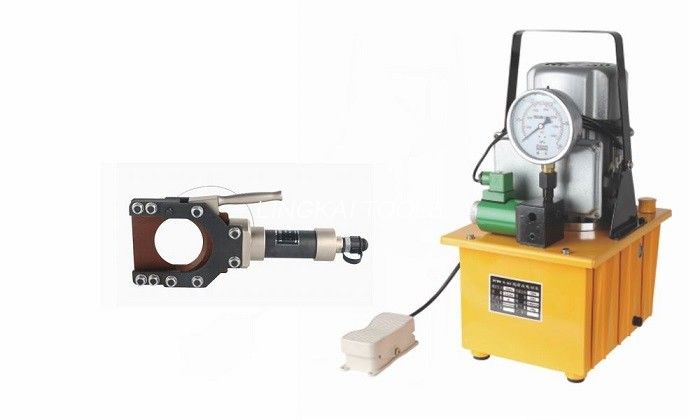

CPC Split Hydraulic Cable Cutter Tool along with Electrical Hydraulic Pump for Cutting Armored Cable
CPC Model Split Type Hydraulic Cable Cutter Max Cutting 100mm Armored Cu / Al Cable
1.The blade is high quality aluminium alloy,durable and long life.
2.Used to cut conductor,bus bar etc.
|
Item number |
21449D | 21449C | 21449 | 21449A |
|
Model |
CPC-85H | CPC-100B | CPC-130A | CPC-160A |
|
(KN) Crimping force |
80KN | 80KN | 80KN | 80KN |
| Cutting
range |
armored CU/AL cable Φ85mm max |
armored CU/AL cable Φ100mm max |
armored CU/AL cable Φ130mm max |
armored CU/AL cable Φ160mm max |
|
Stroke |
85mm | 100mm | 130mm | 160mm |
|
Length |
approx.480mm | approx.620mm | approx.650mm | approx.750mm |
|
(KG) Weight |
approx.N.W6.7KG G.W9.2KG |
approx.N.W12KG G.W15KG |
approx.N.W13.35KG G.W16.5KG |
approx.N.W15.35KG G.W18.5KG |
|
Package |
wooden case | wooden case | wooden case | wooden case |
Hydraulic Cable Cutter Tool
1.Movable style blade for quick replacement.
2.Pin style head for cutting,wire at any position.
3.With good design of whole products.
4.Accurate adjustment before ex works delivery
5.The oil pipe couple fitted with PT3/8"thread.
6.To be worked with pedal pump, manual pump and electric driven hydraulic pump
