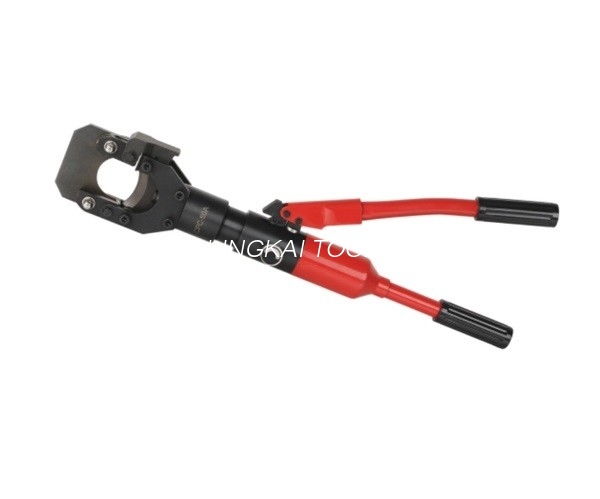

Handheld Hydraulic Crimping Tool Wire Rope Cutting With Easy Operation

Handheld Hydraulic Crimping Tool Wire Rope Cutting With Easy Operation

    • Handheld Hydraulic Crimping Tool Wire Rope Cutting With Easy Operation
    • Handheld Hydraulic Crimping Tool Wire Rope Cutting With Easy Operation
  • Handheld Hydraulic Crimping Tool Wire Rope Cutting With Easy Operation

    Product Details:

    Place of Origin: Ningbo China
    Brand Name: Linkai
    Certification: ISO
    Model Number: CPC50A

    Payment & Shipping Terms:

    Minimum Order Quantity: 2 sets
    Price: get the latest
    Packaging Details: plastic packing
    Delivery Time: 2-3 work days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000sets/day
    Contact Now
    Detailed Product Description
    Model: CPC50A Crimping Force: 80Kn
    Packing: Steel Case Steel Rope: 18mm
    ACSR: 50mm Armored Cable: 50mm
    High Light:

    hydraulic crimping tool for electrical cables

    ,

    hydraulic wire crimping tool

    Handheld Cutting Tool Hydraulic Wire Rope Cutter Cable Cutter for Cutting ASCR



    Armored Cable Cutter Hydraulic Wire Rope Cutter

    Item number

    21447A 21447B 21447C

    Model

    CC-50A CPC-50A HT-50A

    Crimping

    force

    100KN 80KN 70KN

    Cutting

    range

    CU/AL

    cable Φ50mm max

    steel rope

    cable Φ18mm max

    steel rope

    cable Φ15mm max

    ACSR

    cable Φ50mm ma

    steel

    strand Φ10mm max

    armored CU/AL

    cable Φ50mm max

    ACSR

    cable Φ50mm max

    strand Φ16mm max

    armored CU/AL

    cable Φ50mm max

    Stroke

    50mm 50mm 40mm

    Length

    approx.620mm approx.620mm approx.660mm

    (KG)

    Weight

    approx.N.W6.1KG

    G.W9.1KG

    approx.N.W6.2KG

    G.W9.2KG

    approx.N.W6.5KG

    G.W8.9KG

    Package

    plastic box plastic box plastic box


    Use and Characteristic

    1.The tool features a double apeed action:a fast advancing speed for rapid approach of the blades to the connector and a slower more powerful speed for cutting.

    2.For ease of operation and comfort the operator the tool head can be fully rotated through 360 degrees.

    The built in safety valve will bypass the oil supply when the maximum pressure is reached,and the pressure release system can easily be operated at any stage of compression.

    3. With interchangeable dies.

    4.Steel cutting heads which can be mounted in the most convenient position for the user working in difficult locations such as shafts or towers.

    5. Easy to replace blades.

    6. Spring return in single acting model.

    Carrying box for protection and ease of transport.



    Handheld Hydraulic Crimping Tool Wire Rope Cutting With Easy Operation 0
