Product Details
Place of Origin: ningbo
Brand Name: lingkai
Certification: ISO
Model Number: 100T
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: get the latest
Packaging Details: wooden case packing
Delivery Time: 3-5 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 sets /month
Model: |
16013A |
Crimping Force: |
100T |
Crimping Range: |
14-76mm |
Crimping Type: |
Hexagon Crimping |
Stoke: |
24mm |
Weight: |
30 Kgs |
Model: |
16013A |
Crimping Force: |
100T |
Crimping Range: |
14-76mm |
Crimping Type: |
Hexagon Crimping |
Stoke: |
24mm |
Weight: |
30 Kgs |
Product Description

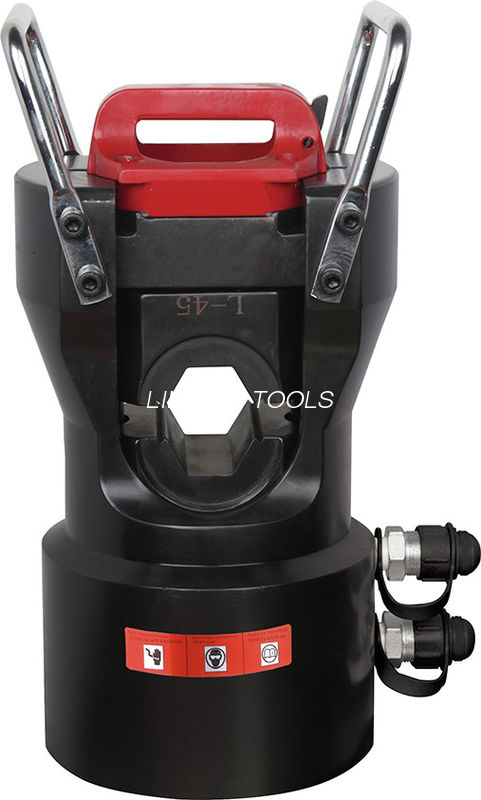

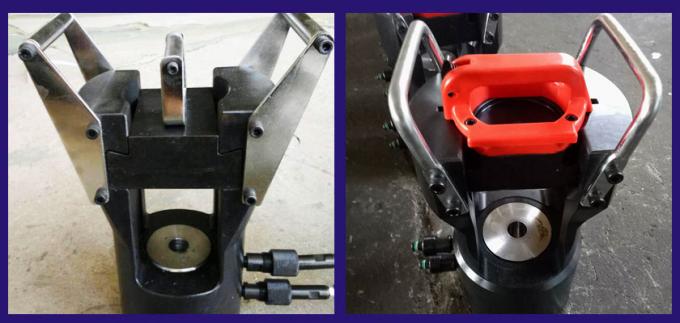

Split hydraulic crimping head can work with hydraulic pump
It is suit for crimping big size of lugs
It is suitable for outside and inside project of the distributor,it is the special tools for all kinds if connecting and building over head cable
Feature
1. It is suitable for outside and inside project of the distributor house, it is the special tools for all kinds of the connecting and building over head cable.
2. It pressed tightly on 10kv-500kv high voltage cable casing pipe, clips nared ends and hexagon shape.
3. The oil pipe coipler fitted with PT 3/8'' thread.
4.To be worked with pedal pump, manual pump and electric driven hydraulic pump.
| Item number | 16103 | 16103A | 16104 | 16105 | 16106 |
| Model | YJD-600 | YJD-1000 | YJD-1250 | YJD-2000 | YJD-3000 |
|
Crimping force |
60T | 100T | 125T | 200T | 300T |
|
Crimping range |
14-55mm | 14-76mm | 14-76mm | 14-90mm | 14-100mm |
| type | hexagon crimping | hexagon crimping | |||
| Stroke | 24mm | 24mm | 35mm | 35mm | |
| Heigth | approx.370mm | approx.480mm | |||
|
Weight (KG) |
approx.N.W20KG G.W30KG |
approx.N.W30KG G.W40KG |
approx.N.W50KG G.W60KG |
approx.N.W85KG G.W95KG |
approx.N.W120KG G.W130KG |
| Package | wooden case | wooden case | |||
