Product Details:
Payment & Shipping Terms:
|
| Model: | CO-630 | Crimping Force: | 350KN |
|---|---|---|---|
| Crimping Range: | 150-630mm2 | Crimping Type: | Hexagon Crimping |
| Height: | 350mm | Type: | Split Type |
| High Light: | 350kn hydraulic crimping tool,630mm2 hydraulic crimping tool,hydraulic cable lug crimping tool |
||
Product Description

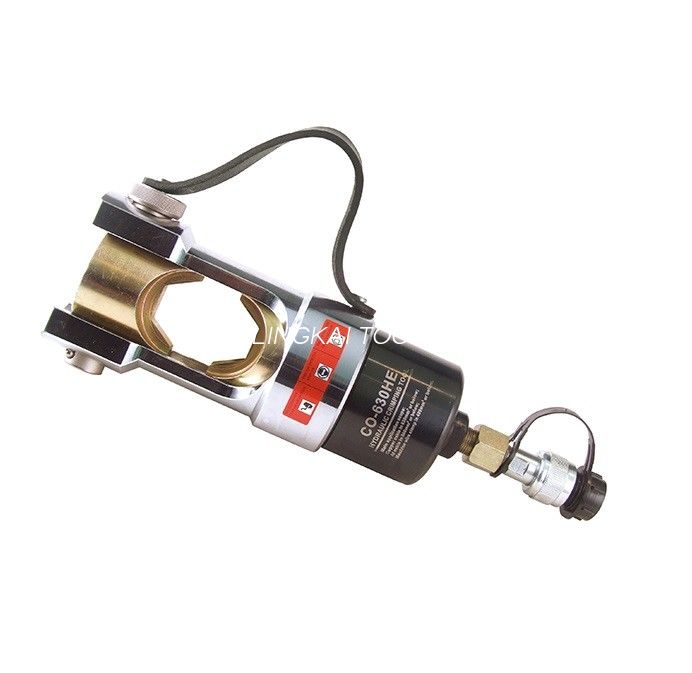

Split hydraulic crimping head can work with hydraulic pump
It is suit for crimping big size of lugs
It is suitable for outside and inside project of the distributor,it is the special tools for all kinds if connecting and building over head cable
| Item number | 16101 | 16101A | 16101B | 16101C |
| Model | CO-630B | CO-630A | CO-1000 | CO-400 |
|
Crimping force |
300KN | 350KN | 550KN | 200KN |
|
Crimping range |
150-630mm² | 150-630mm² | 400-1000mm² | 16-400mm² |
| Crimping
type |
hexagon crimping | hexagon crimping | hexagon crimping | hexagon crimping |
| Dies |
150,185,240,300, 400,500,630mm² |
150,185,240,300, 400,500,630mm² |
400,500,630, 800,1000mm² |
16,25,35,50, 70,95,120,150, 185,240,300,400mm² |
| Stroke | 24mm | 24mm | 26mm | 24mm |
| Heigth | approx.275mm | approx.350mm | approx.400mm | approx.250mm |
| Weight(KG) |
approx.N.W11.5KG G.W20KG |
approx.N.W16.7KG G.W25.5KG |
approx.N.W32KG G.W39KG |
approx.N.W5.4KG G.W10KG |
| Package | wooden case | wooden case | wooden case | paper box |
Feature
1. It is suitable for outside and inside project of the distributor house, it is the special tools for all kinds of the connecting and building over head cable.
2. It pressed tightly on 10kv-500kv high voltage cable casing pipe, clips nared ends and hexagon shape.
3. The oil pipe coipler fitted with PT 3/8'' thread.
4.To be worked with pedal pump, manual pump and electric driven hydraulic pump.
