Product Details:
Payment & Shipping Terms:
|
| Model: | CWC 200 | Cutting Force: | 300kn |
|---|---|---|---|
| Max Of Thickness Sheet: | 12mm | Width Of Sheet: | 200mm |
| Height: | 460mm | Type: | Al/cu Cutter |
| High Light: | Cwc-150 busbar cutter,300kn Busbar Cutter,hydraulic busbar cutter |
||
Application

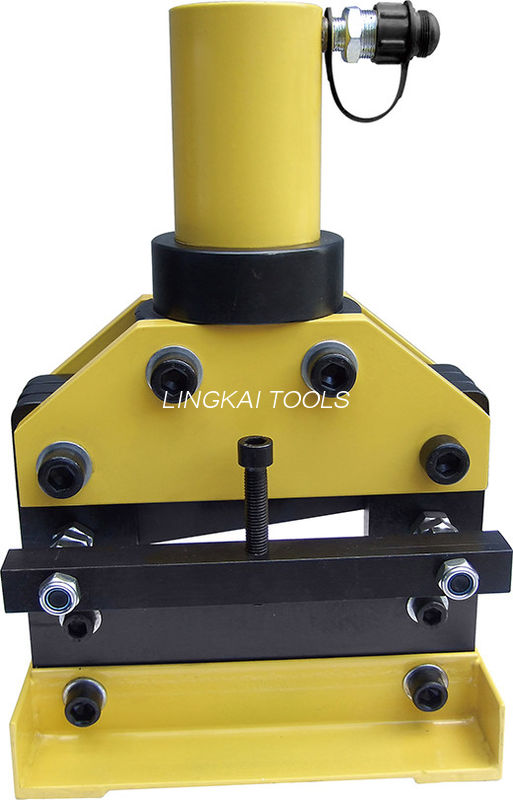

Portable Model CWC Hydraulic Bus Bar Cutter For Cutting is formed by high strength alloy steel precision.It is high efficacy due to smooth fracture surface and neat without burrs. It only takes a few seconds to cut off the Angle. It is mainly used in the iron tower factory, cutting off in transmission and distribution engineering construction site. It is used to cut off the copper and aluminum platoon,and the hydraulic pump needs to be matched.
| Item number | 06242-1 | 06242-1A |
| Model | CWC-150 | CWC-200 |
| Cutting force | 200KN | 300KN |
|
Max thickness of sheet |
CU/AL plate 10mm | 12mm |
| Width of sheet | CU/AL plate 150mm | 200mm |
| Height | approx.440mm | approx.460mm |
| Weight(KG) |
approx.N.W30KG G.W33KG |
approx.N.W37KG G.W40KG |
| Package | wooden case | wooden case |
it is designed for bending Cu/Al bus bar
fast cutting speed without leading to fine scrapping after cutting, The big scrap is good for recycle
V style blade is designed for automatic positioning object to be cut.
Cutting sureface is smooth without distortion
protable unit could be carried to site or fixed in the factory for batch cutting.
