Product Details
Place of Origin: NINGBO
Brand Name: lingkai
Certification: ISO
Model Number: CPC-85
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: get the latest
Packaging Details: wooden case
Delivery Time: 3-5 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 sets/month
Model: |
CPC-85 |
Cutting Force: |
8T |
Cutting Range: |
85mm Cu/al |
Length: |
480mm |
Weight: |
7.4 Kgs |
Type: |

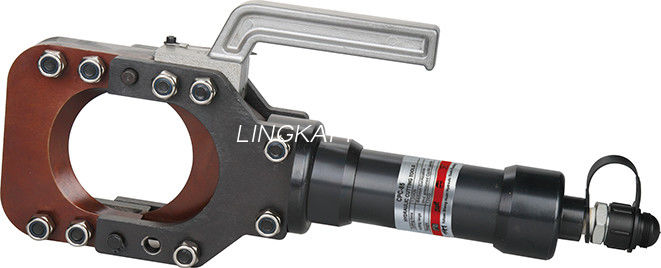

Split Type Cable Cutter |
Model: |
CPC-85 |
Cutting Force: |
8T |
Cutting Range: |
85mm Cu/al |
Length: |
480mm |
Weight: |
7.4 Kgs |
Type: |
Split Type Cable Cutter |
Application
The blades are manufactured from high strength special steel, heat treated to ensure a long service life.
The head can be easily opened to allow the cutting of running cables.
Hydraulic cutting head complete with quick automatic coupler for connection to a hydraulic pump with a working pressure of 700 bar max.
| Item number | 21449D | 21449C | 21449 | 21449A |
| Model | CPC-85H | CPC-100B | CPC-130A | CPC-160A |
|
Crimping force(KN) |
80KN | 100KN | 150KN | 150KN |
| Cutting
range |
armored CU/AL cable Φ85mm max |
armored CU/AL cable Φ100mm max |
armored CU/AL cable Φ130mm max |
armored CU/AL cable Φ160mm max |
| Stroke | 85mm | 100mm | 130mm | 160mm |
| Length | approx.480mm | approx.620mm | approx.650mm | approx.750mm |
| Weight(KG) |
approx.N.W6.7KG G.W9.2KG |
approx.N.W12KG G.W15KG |
approx.N.W13.35KG G.W16.5KG |
approx.N.W15.35KG G.W18.5KG |
| Package | wooden case | wooden case | wooden case | wooden case |

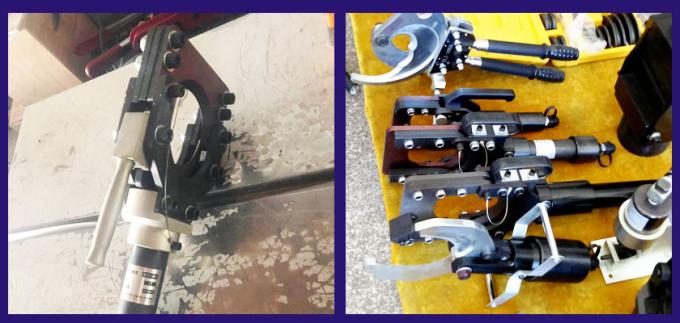

Hook style cutter head for convenient open and close, wires could be put at any position
oil pipe coupling fitted with PT3/8'' thread
to be worked with pedal pump, manual pump and electric driven hydraulic pump
