Product Details:
Payment & Shipping Terms:
|

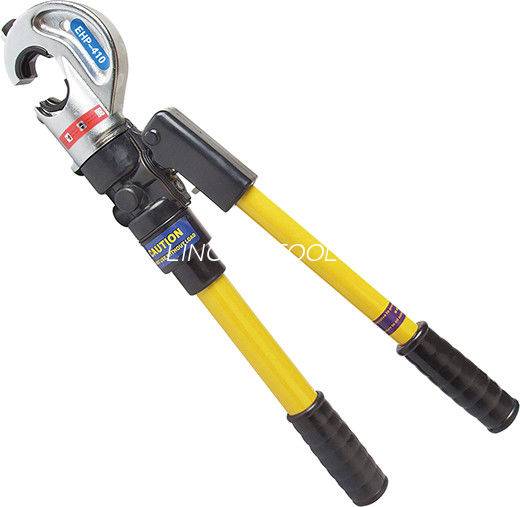

| MODEL: | EP 410 510 610 | CRIMPING RANGE: | 16-400MM2 |
|---|---|---|---|
| FORCE: | MAX 13t | OIL: | 200CC |
| STROKE: | MAX 42MM | Package: | Plastic |
| High Light: | 13t hydraulic terminal crimping tool,13t hydraulic crimping pliers,400MM2 Hydraulic Terminal Crimping Tool |
||
Application
1. The tool has a double speed action: a fast advancing speed for rapid approach of the blades to the
connector and a slower more powerful speed for crimping.
2. For easy and comfort operation, the tool head can rotate 180 degress.
3. The built-in safety valve will by-pass the oil supply when the maximum pressure is reached, and the
pressure release system can easily be operated at any stage of compression
4. With interchangeable dies and safety system inside.
Feature
Open the working clamp head, 350 ° free rotation
Two-stage hydraulic system to improve work efficiency and more effort
Built-in safety valve to prevent overpressure
Press the manual release button
Press release halfway, quick reset
Novel head design
Flip head
Light, 350 ° free rotation
High-strength aluminum alloy body
More compact, more light
Non-slip handle
| Item number | 16199 | 16200 | 16200A |
| Model | EP-430 | EP-510 | EP-610 |
|
Crimping force |
120KN | 130KN | 130KN |
|
Crimping range |
16-400mm² | 16-400mm² | 16-400mm² |
| Crimping
type |
hexagon crimping | hexagon crimping | hexagon crimping |
| Dies |
50,70,95,120,150, 185,240,400mm² |
50,70,95,120,150, 185,240,400mm² |
50,70,95,120,150, 185,240,400mm² |
| Stroke | 32mm | 38mm | 42mm |
| Oil capacity(CC) | 145cc | 200cc | 200cc |
| Length | approx.770mm | approx.780mm | approx.800mm |
| Weight(KG) |
approx.N.W7.1KG G.W10.7KG |
approx.N.W7.4KG G.W11KG |
approx.N.W8.5KG G.W12.1KG |
| Package | plastic box | plastic box | plastic box |
