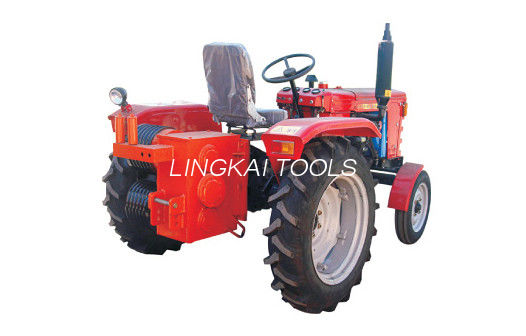

38m/Min 6 Groove 40kn 22kw Winch Tractor

Product Details

Place of Origin: NINGBO

Brand Name: LINGKAI

Certification: ISO

Model Number: TRACTOR WINCH

Payment & Shipping Terms

Minimum Order Quantity: 1 sets

Price: get the latest

Packaging Details: exported packing

Delivery Time: 3-8 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 200

Get Best Price
Product Details
High Light:

40kn winch tractor

,

22kw winch tractor

,

6 groove winch tractor

Power:
22KW
Model:
SX4-V1
Bottom Of Groove:
300mm Diameter
Number Of Groove:
6
Traction Speed:
38 (M/MIN)
Traction Force(KN):
40 KN
Power:
22KW
Model:
SX4-V1
Bottom Of Groove:
300mm Diameter
Number Of Groove:
6
Traction Speed:
38 (M/MIN)
Traction Force(KN):
40 KN
Product Description

DOUBLE DRUM TRACTOR-DRAWN WINCH/WALKING TRACTOR WINCH/TRACTOR MACHINE

Application

Fast Speed Double Drum Winch Tractor For Pulling and Lifting During Tower Erection is applicable to pull no-twist wire rope.Suitable for the construction of the tower line,traction line,tight line operation,laying cable.



Features

Four gear,forward gear and reverse gear

Double drum,seven groove,protect the wire rope

speedy and convenient

The grinding of walking tractor is reformed from 12 type walking tractor.

It is made of four-wheel drive 304 type tractors. Can use a two-wheel drive 300 tractor(Item No. 08127)



SPECIFICATIONS:

Item number 08126 Power 22KW Model SX4-V1
Gear reversalⅠ
Traction force(KN) 40 30 20 -
Traction speed(M/MIN) 12 21 38 11
bottom of groove diameter Φ300mm
Number of groove 6
Weight(KG) 1740kg
outline size 2900x14000x1440mm

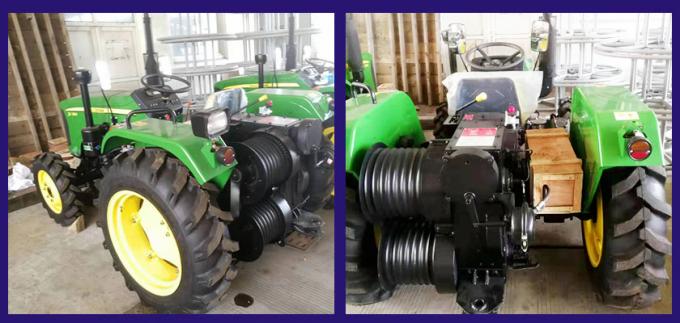

38m/Min 6 Groove 40kn 22kw Winch Tractor 0
