Product Details:
Payment & Shipping Terms:
|
| Model: | 12-A;12-B | Name: | Walking Tractor Winch |
|---|---|---|---|
| Power: | 15HP | Speed Rpm: | 2000 |
| High Light: | 15hp winch tractor machine,2000Rpm winch tractor machine,150mm winch tractor machine |
||
Application

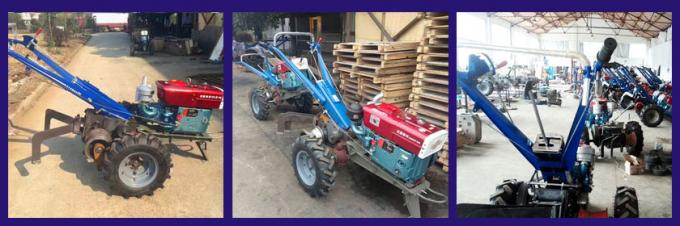

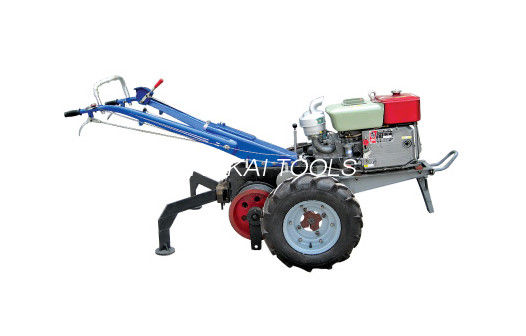

Fast Speed Double Drum Winch Tractor For Pulling and Lifting During Tower Erection is applicable to pull no-twist wire rope.
Features
Four gear,forward gear and reverse gear
Double drum,seven groove,protect the wire rope
speedy and convenient
The grinding of walking tractor is reformed from 12 type walking tractor.
| Item number | Model |
Ground Clearance(MM) |
wheel-base(MM) | Power(HP) | speed(RPM) | Travel speed(KM/H) |
Outline size(MM) |
Weight(KG) |
| 09171 | 12-A | 150 | 1040 | 15 | 2000 | 3-13 | 2670x1040x1300 | 550 |
| 09172 | 12-B | 150 | 1040 | 15 | 2000 | 3-13 | 2670x1040x1300 | 600 |
| Gear | Ⅰ | Ⅱ | Ⅲ | IV | reversalⅠ | reversalⅡ |
| Traction force(T) | 60 | 37 | 20 | 12 | / | / |
| Traction speed(M/MN) | 11.7 | 18.9 | 34.4 | 55.6 | 6.2 | 21.3 |
