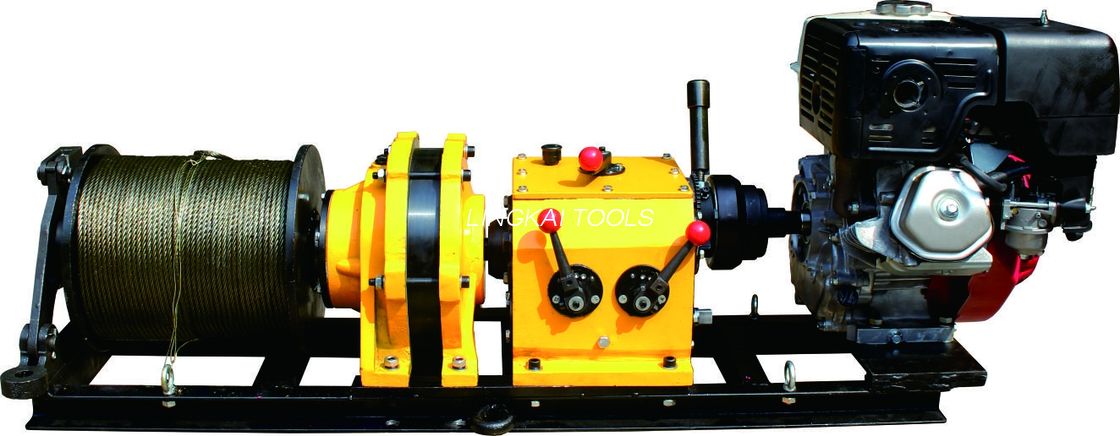

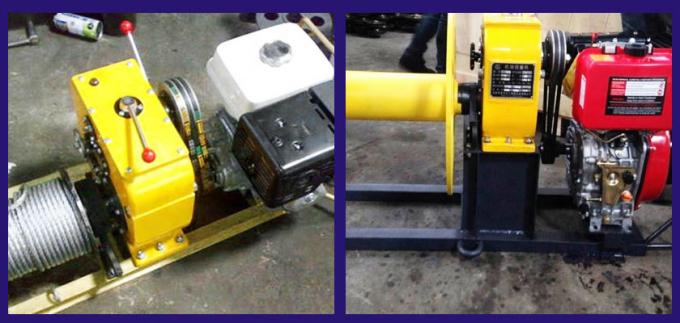

5T Diesel Engine Honda Gasoline Cable Pulling Winch

Name: 5T Diesel Engine Honda Gasoline Cable Pulling Winch
Brand: LINGKAI
SKU: JJM5Q JJM3C
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (166 reviews)
ISBN: 13481645

Large Image : 5T Diesel Engine Honda Gasoline Cable Pulling Winch

Product Details:

Place of Origin:	NINGBO
Brand Name:	LINGKAI
Certification:	ISO
Model Number:	JJM5Q JJM3C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	get the latest
Packaging Details:	wooden case
Delivery Time:	3-5 work days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	200 sets/month

Contact Now

Detailed Product Description

Model:

JJM5Q JJM3C

Name:

Cable Pulling Winch

Weight:

190kgs

Pulling Force:

50 KN

High Light:

Gasoline Cable Pulling Winch

Honda Cable Pulling Winch

5T Cable Pulling Winch

5 TON 30 KN BELT DRIVE WINCH DIESEL ENGINE HONDA GASOLINE CABLE PULLING WINCH

Quick Detail 1. Gas engine powered winch 2. Max Pulling Force:50KN 3. Weight:190kg(No wire rope)

4. Dimension:1200x600x700mm 5. Wire rope:10mm 300M / 14mm 200m

Application It is used for tower erection and sagging operation in line construction. It can also be used for pulling conductor or underground cable. Powered winches are the construction tools of erecting electric circuits of high pressure electric transmission in the sky and laying electrical cables underground. They can complete the tasks of heavy-lifting and dragging such as erecting the wire. Testified by the experiments and practical uses, they have reasonable structure, small volume, light weight, strong power, nimble operation and convient transporting. Based on so many advantages, this two models of Powered winch are popular with the electric workers.

Features 1. Speedy and Efficient. 2. Safe and Reliable. 3. Compact structure. 4. Small volume. 5. Light in weight.

TECHNICAL DATA

tem number	Model Type	Gear	Pulling Force(KN)	Pulling Speed(m/min)	Power	重量 Weight(KG)
08156A	JJM5Q	Slow	50	5	HONDA GASOLINE GX390 13HP	190
		Fast	30	11
		Reverse	-	3.2
08156B	JJM5C	Slow	50	5	Diesel Engine 9KW	190
		Fast	30	11
		Reverse	-	3.2
