|Material Of Sheave:||Aluminum Alloy Lined With Neoprene||Width Of Sheave:||75, 100, 110 Mm|
|Inner Diameter Of Sheave::||408, 560, 710 Mm||Conductor Stringing Blocks:||Overhead Cable Stringing Blocks|
|Conductor Diameter:||Up To 30mm||Packing:||Container, Plywood...|
220KV Transmission Line Conductor Stringing Blocks,
Aluminum Alloy Sheaves Conductor Stringing Blocks,
220KV Overhead Transmission Line Stringing Tools

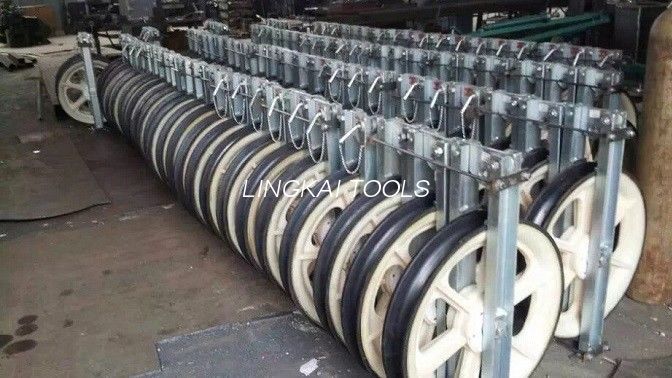

Overhead Cable Stringing Blocks With Aluminum Alloy Sheaves 220 Kv Transmission Line
Overhead Conductor Stringing Blocks are used for overhead transmisson line conductor or OPGW stringing. The sheaves for conductor or OPGW are made in aluminum alloy, which can be lined with neoprene. The central sheave can be made in steel or high strength Nylon.
The aluminum alloy sheaves are made by die casting method, for high quality casting with light weight, and high strength sheaves.
The sheave of 508mm and 660mm is lined with neoprene, for protection of conductor surface.
The aluminum sheave of 660mm and 822mm is made by Aluminum Die casting, with very good surface and high strength.
Three sheaves Stringing Blocks
|Item No.||Model||ACSR Size Range (mm²)||Working Load (KN)||Weight (kg)||Material of Sheave|
|10102||SHS508||300-400||40||61||Central steel or Nylon sheave, Side sheave Aluminum lined with neoprene|
|10145||SHS822||500-650||60||168||Central steel or Nylon sheave, Side sheave Aluminum lined with neoprene|
Application: It is suitable to string two stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The conductor sheave is made in aluminum alloy and lined with neoprene, the central sheave can be steel or high strength Nylon. All the sheaves are mounted on ball bearings, the frame is made of galvanized steel.
