Product Details:
Payment & Shipping Terms:
|
| Packing: | Steel Drum | Standard Length: | 1000 Meters Optional |
|---|---|---|---|
| Lubrication: | Optional | Galvanization: | Hot Dipped |
| Model: | ATW13 X 1000M | Diameter Of Strand: | 3.0mm |
| Breaking Load: | 115KN | ANTI TWIST WIRE ROPE: | 13MM ANTI TWISTING PILOT STEEL WIRE ROPE |
| High Light: | 13mm anti twisting steel wire rope,anti twisting steel wire rope stringing,13mm anti twist wire rope |
||
13MM Anti Twisting Steel Wire Rope is used for single conductor stringing on overhead power lines. It is braided from high strength 3.0mm galvanized strand.
13MM ANTI TWISTING BRAIDED STEEL WIRE ROPE
Anti twisting braided steel wire rope is used as pilot wire rope for pulling conductors or OPGW cable in overhead transmission line stringing operation.
| Item No. | Nominal diameter | Breaking Load (KN) | Single strand diameter (mm) | Normal T/S (N/mm²) | Lubricated Weight (kg/1000m) | |
| 18205A | 13 | 115.00 | Φ3.0 | 1960 | 630 | |
13mm rope is braided from 12 strands of 1X19W wire, 1000 meter/drum

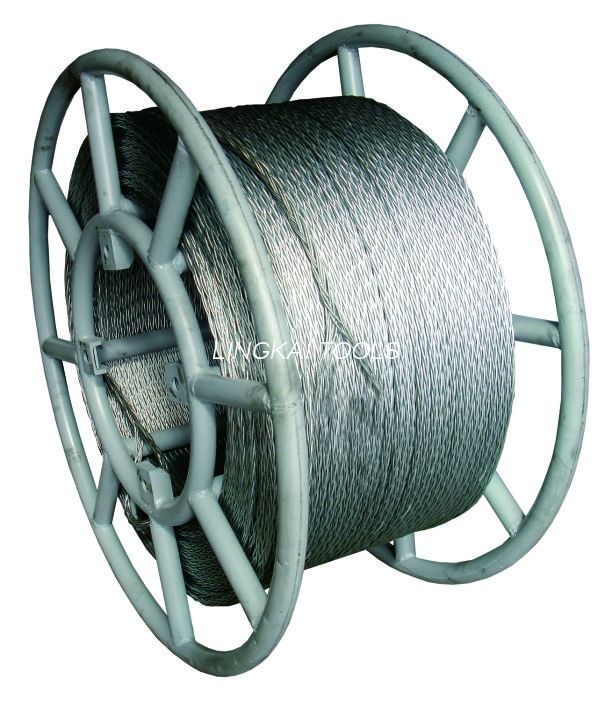

Packed in 1200mm diameter steel drum.
Anti twisting steel rope is specially braided from 12 strands of high strength, high flexible galvanized steel wire. The braided steel strand has high flexibility, complete stability to rotation under tension force.
It can homogeneously distribute the pressure between the elementary wires. The special rope can increase efficiency during the overhead transmission line stringing work. The rope is packed in steel drum which can be installed directly on the reel winder of puller.
